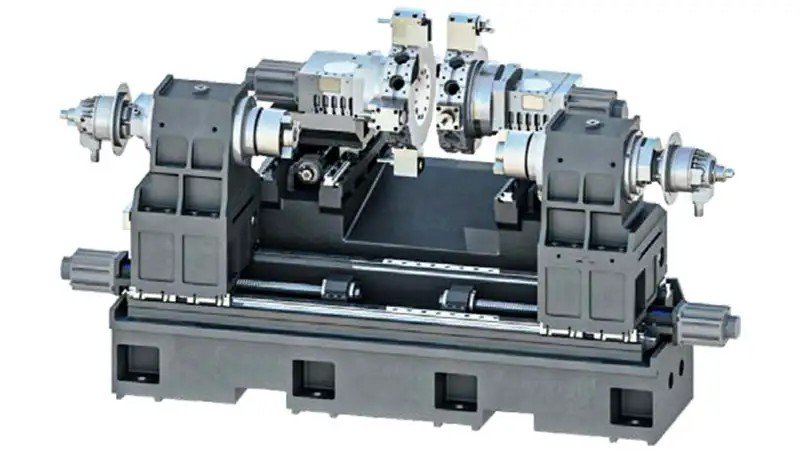

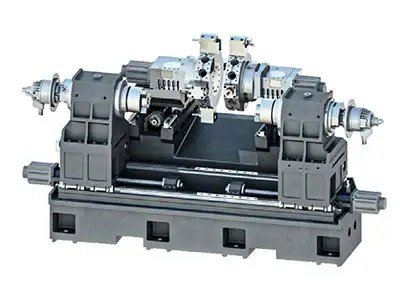

The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
The TT series is a counter-spindle dual-turret CNC machine tool launched by MYD; the counter-spindle dual-turret design enables multi-process (turning, milling, etc.) composite machining and multi-operation integrated processing, providing strong support for your production!

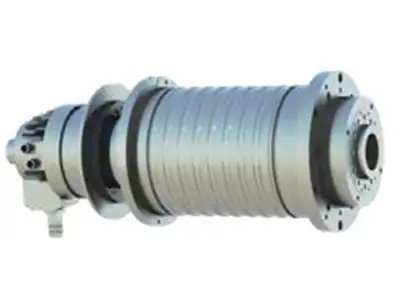

● Permanent magnet synchronous electric spindle : High-precision, high-rigidity built-in permanent magnet synchronous electric spindle, A2-5, A2-6 spindle specifications.

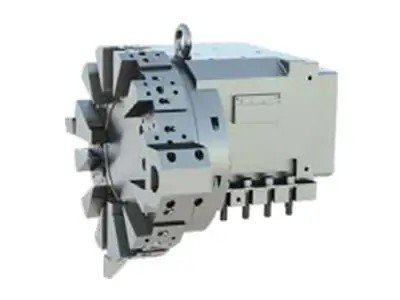

● Servo turret : Standard 12 stations, fastest 0.25s tool change time, repeat positioning accuracy.

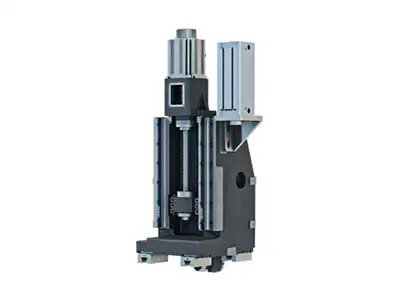

● Column : Column movable structure, high-rigidity straight Y-axis design.

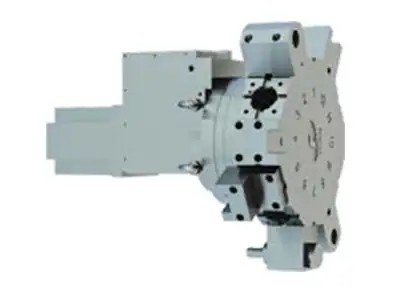

● Power turret : Standard 12 stations, high-rigidity high-torque output power turret, BMT55 power turret specifications.

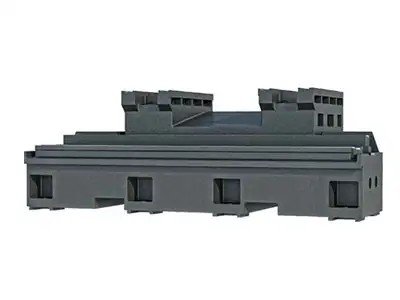

● Bed : HT300A high-strength dense castings, integral cast bed.
Parameters | |||
Model | 35 series | 45 series | Unit |
Spindle taper (main/sub) | A2-5 | A2-6 | JIS |
Standard chuck size (main/sub) | 6 | 8 | ” |
Maximum spindle speed (main/sub) | 6000 | 4500 | rpm |
Spindle power (main/sub) | 11/15 | 15/18.5 | kW |
Maximum machining diameter | Ø250 | O250 | mm |
Maximum machining length | 160 | 160 | mm |
Number of tools | 12 | 12 | pcs |
Tool specifications | Ø25/Ø40 | Ø25/Ø40 | mm |
Power turret specifications | BMT55 | BMT55 | |
The maximum machining length in the above parameters is a standard configuration option. | |||
| Modular series models: TT(), TT()M, TT()Y Note 1: () indicates the machine tool specification code, e.g., TT35/TT35M/TT35Y Note 2: "" indicates dual-spindle dual-turret CNC lathe, "M" indicates dual-spindle dual-turret turning center, "Y" indicates dual-spindle dual-turret turn-mill center. | |||
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
