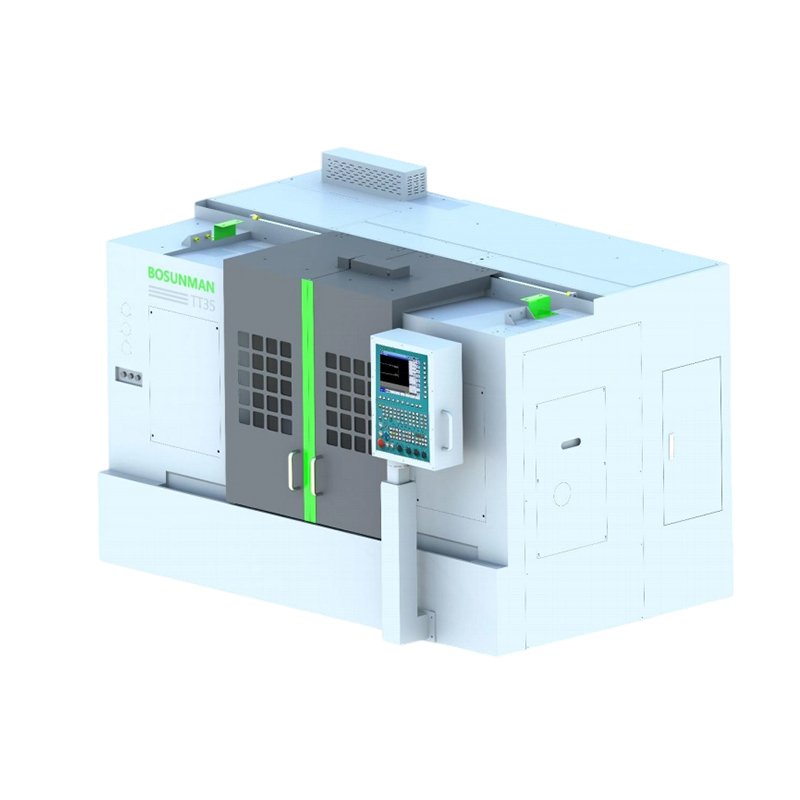

BOSUNMAN comprehensive and intelligent compound machine tools fully boost the transformation and upgrading of industrial sectors !

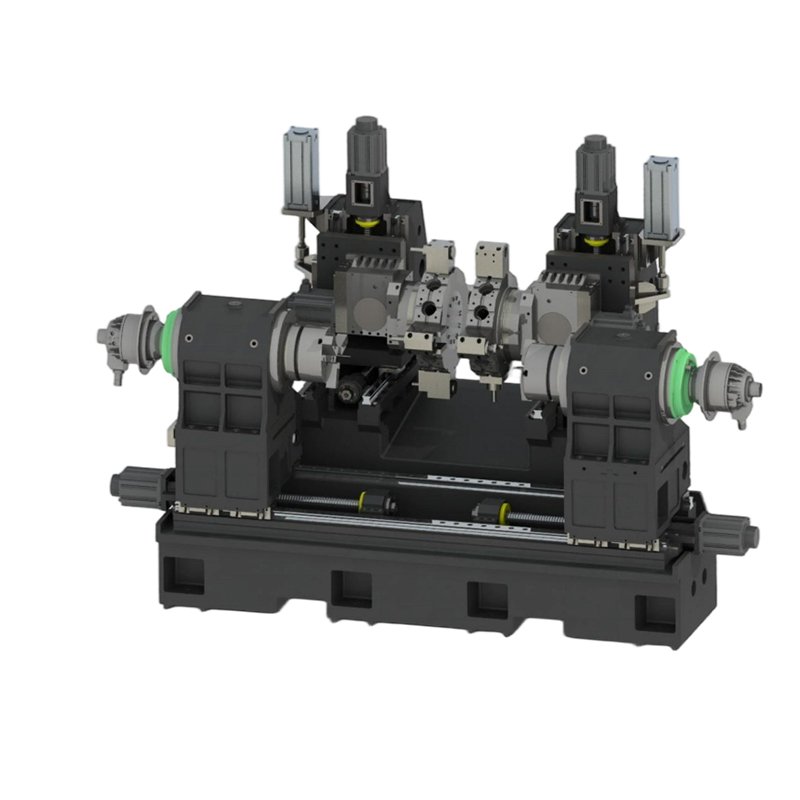

Structure: large-span stepped rail, orthogonal box-type Y-axis;
Dual-Spindle & Turret: one TT equals to two single-spindle machines, with the dual spindles capable of automatic docking for sequential processing, to reduce manpower and floor space while increasing machining accuracy;
Synchronous Docking : all TT serie s equipped with BOSUNMAN built-in electric spindle, max speed up to 6000rpm. The dual spindles can achieve synchronous docking at the max speed of 2000rpm, to greatly improve machining efficiency;
Compound Processing: optional with high-torque power turret and Y-axis module to realize compound needs for turning, milling and drilling.
Series | TT () | TT （） M | TT （） Y |
Index | Standard | Power Turret | Power Turret + Y-axis Module |
TT Series Parameters | |||||||
Model | TT35 | TT35M | TT35Y | TT45 | TT45M | TT45Y | Unit |
Spindle-1 Type | A2-5 | A2-5 | A2-5 | A2-6 | A2-6 | A2-6 | JIS |
Spindle-1 Through Hole / Through Bar Diameter | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | Ø66/Ø50 | Ø66/Ø50 | Ø66/Ø50 | mm |
Spindle-1 Chuck Size | 6 | 6 | 6 | 8 | 8 | 8 | “ |
Spindle-1 Power（ S1/S3） | 11/15 | 11/15 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 | kw |
Spindle-1 Torque（ S1/S3） | 52.5/105 | 52.5/105 | 52.5/105 | 105/210 | 105/210 | 105/210 | N·m |
Spindle-1 Max. Speed | 6000 | 6000 | 6000 | 4500 | 4500 | 4500 | rpm |
Spindle-2 Type | A2-5 | A2-5 | A2-5 | A2-6 | A2-6 | A2-6 | JIS |
Spindle-2 Through Hole / Through Bar Diameter | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | Ø66/Ø50 | Ø66/Ø50 | Ø66/Ø50 | mm |
Spindle-2 Chuck Size | 6 | 6 | 6 | 8 | 8 | 8 | “ |
Spindle-2 Power（ S1/S3） | 11/15 | 11/15 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 | kw |
Spindle-2 Torque（ S1/S3） | 52.5/105 | 52.5/105 | 52.5/105 | 105/210 | 105/210 | 105/210 | N·m |
Spindle-2 Max. Speed | 6000 | 6000 | 6000 | 4500 | 4500 | 4500 | rpm |
Max. Machining Diameter | Ø250 | Ø250 | Ø250 | Ø250 | Ø250 | Ø250 | mm |
Max. Machining Length | 160 | 160 | 160 | 160 | 160 | 160 | mm |
Y Travel | —— | —— | 100 ( ±50） | —— | —— | 100 ( ±50） | mm |
Turret Type | Servo | Power | Power | Servo | Power | Power | —— |
Turret Specification | 80 | 80 | 80 | 80 | 80 | 80 | —— |
Tool Specification | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | mm |
Power Tool Holder Type | —— | BMT55 | BMT55 | —— | BMT55 | BMT55 | —— |
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
