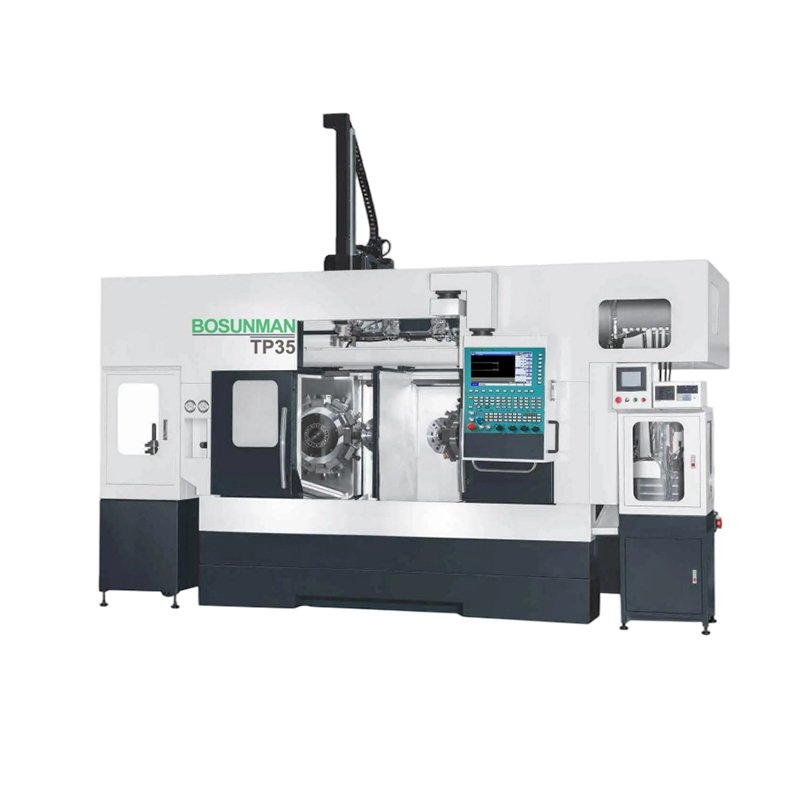

BOSUNMAN comprehensive and intelligent compound machine tools fully boost the transformation and upgrading of industrial sectors !

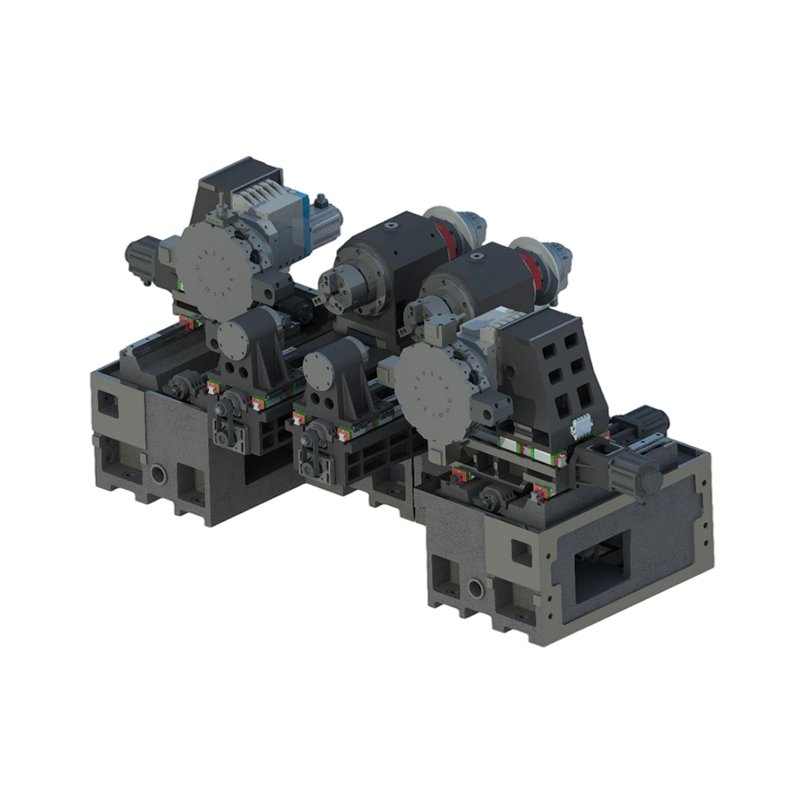

Structure: large-span stepped rail, orthogonal box-type Y-axis;
Volume: TP series compact and small, Standard TP35 occupation area only 3㎡, saving 50% floor space compared with similar traditional machine;
Integrated Processing: achieve complete processing solutions including loading, multi-operation, unloading and measuring.
Compound Processing: optional with high-torque power turret and Y-axis module to realize compound needs for turning, milling and drilling.
NC Intelligent Tailstock: optional, suitable for processing short & medium shaft.
Series | TP () | TP （） M | TP （） Y | TP （） II | TP （） MII | TP （） YII |
Index | Standard Lathe | Power Turret | Y-axis Module | Dual Spindle + Servo Turret | Dual Spindle + Power Turret | Dual Spindle + Y axis Module |
TP35 Series Parameters | |||||||
Model | TP35 | TP35M | TP35Y | TP35II | TP35MII | TP35YII | Unit |
Spindle-1 Type | A2-5 | A2-5 | A2-5 | A2-5 | A2-5 | A2-5 | JIS |
Spindle-1 Through Hole / Through Bar Diameter | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | mm |
Spindle-1 Chuck Size | 6 | 6 | 6 | 6 | 6 | 6 | “ |
Spindle-1 Power（ S1/S3） | 11/15 | 11/15 | 11/15 | 11/15 | 11/15 | 11/15 | kw |
Spindle-1 Torque（ S1/S3） | 52.5/105 | 52.5/105 | 52.5/105 | 52.5/105 | 52.5/105 | 52.5/105 | N·m |
Spindle-1 Max. Speed | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | rpm |
Spindle-2 Type | —— | —— | —— | A2-5 | A2-5 | A2-5 | JIS |
Spindle-2 Through Hole / Through Bar Diameter |
—— |
—— |
—— | Ø56/Ø45 | Ø56/Ø45 | Ø56/Ø45 | mm |
Spindle-2 Chuck Size | —— | —— | —— | 6 | 6 | 6 | “ |
Spindle-2 Power（ S1/S3） | —— | —— | —— | 11/15 | 11/15 | 11/15 | kw |
Spindle-2 Torque（ S1/S3） | —— | —— | —— | 52.5/105 | 52.5/105 | 52.5/105 | N·m |
Spindle-2 Max. Speed | —— | —— | —— | 6000 | 6000 | 6000 | rpm |
Max. Machining Diameter | Ø250 | Ø250 | Ø250 | Ø250 | Ø250 | Ø250 | mm |
Max. Machining Length | 250 | 250 | 250 | 250 | 250 | 250 | mm |
Y Travel | —— | —— | 100 ( ±50） | —— | —— | 100 ( ±50） | mm |
Tailstock（ Optional） | MT3 | MT3 | MT3 | MT3 | MT3 | MT3 | MT |
Turret Type | Servo | Power | Power | Servo | Power | Power | —— |
Turret Specification | 80 | 80 | 80 | 80 | 80 | 80 | —— |
Tool Specification | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | □25/Ø40 | mm |
Power Tool Holder Type | —— | BMT55 | BMT55 | —— | BMT55 | BMT55 | —— |
