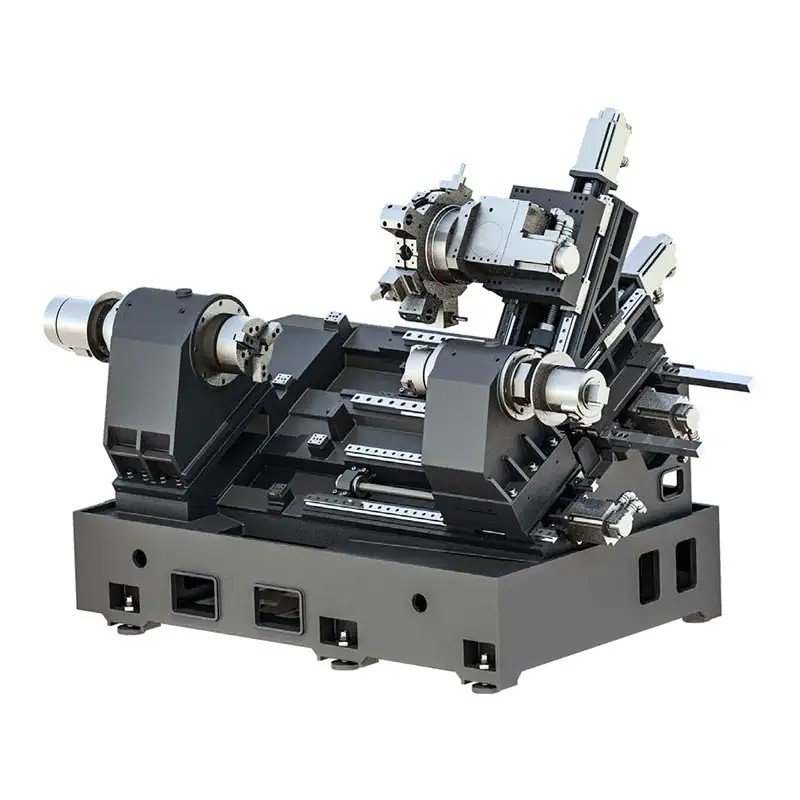

The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to satisfy your rich and creative imagination. Simple yet powerful turning and milling cutting and strong process integration capabilities bring unlimited possibilities to your production!

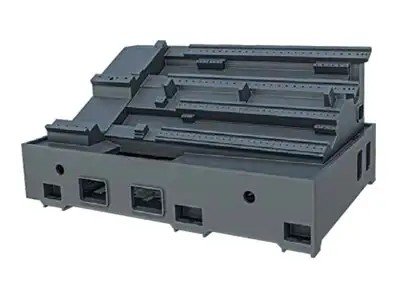

● Bed : HT300A high-strength dense cast iron casting, integral 30° slant bed.

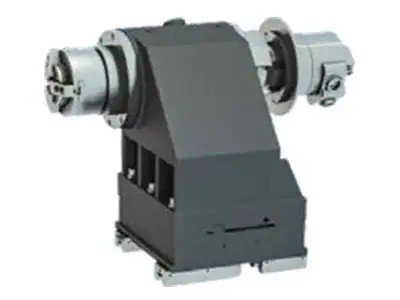

● Permanent Magnet Synchronous Spindle : High-precision, high-rigidity built-in permanent magnet synchronous spindle, spindle specifications A2-5, A2-6, A2-8.

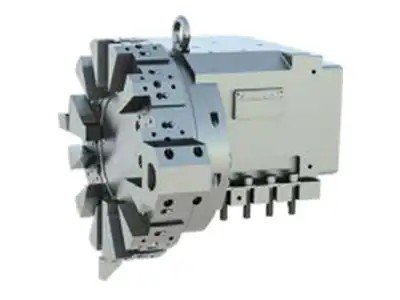

● Servo Turret : Standard 12 stations, fastest 0.35s tool change time, precise repeat positioning accuracy.

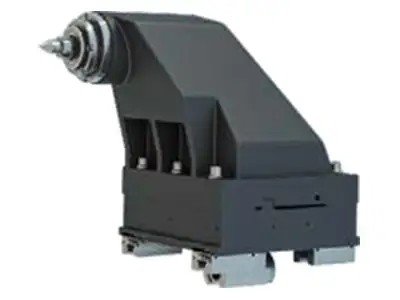

● NC Intelligent Tailstock : Servo fully programmable tailstock, tailstock thrust, position, and speed programmable control, MT3, MT4, MT5 sleeve specifications.

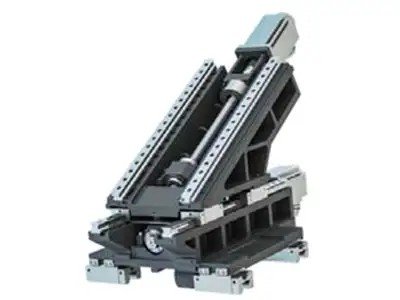

● Y-axis Module : Modular design, virtual Y-axis system.

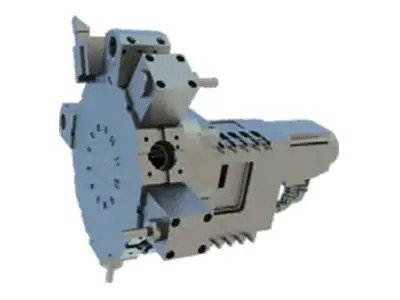

● Power Turret : 12/15 stations, high-rigidity high-torque output power turret, BMT45, BMT55, BMT65 power turret specifications.
Parameters | ||||
Model | 35 Series | 45 Series | 55 Series | Unit |
Spindle Taper (Main/Sub) | A2-5/A2-4 | A2-6/A2-5 | A2-8/A2-6 | JIS |
Standard Chuck Size (Main/Sub) | 6/5 | 8/6 | 10/8 | ” |
Maximum Spindle Speed (Main/Sub) | 6000/8000 | 4500/6000 | 3000/4500 | rpm |
Spindle Power (Main) | 11/15 | 15/18.5 | 30/37 | kW |
Spindle Power (Sub) | 7.5/11 | 11/15 | 15/18.5 | kW |
Maximum Machining Diameter | Ø230 (Ø250) | Ø315 (Ø390) | Ø450 (Ø500) | mm |
Maximum Machining Length | 350 | 550 | 750 | mm |
Number of Tools | 12 | 12 | 12 | pcs |
Tool Specifications | □25/Ø32 | □25/Ø40 | □25/Ø50 | mm |
Power Turret Specifications | BMT45 | BMT55 | BMT65 | |
The maximum machining length in the above parameters is the standard configuration option; machining length is optional. | ||||
Modular series models: T()P, T()M, T()S, T()MS, T()Y, T()SY Note 2: "P" indicates slant bed CNC lathe, "M" indicates turning center, "S" indicates dual-spindle CNC lathe, "MS" indicates dual-spindle turning center, "Y" indicates turn-mill center, "SY" indicates dual-spindle turn-mill center. | ||||
