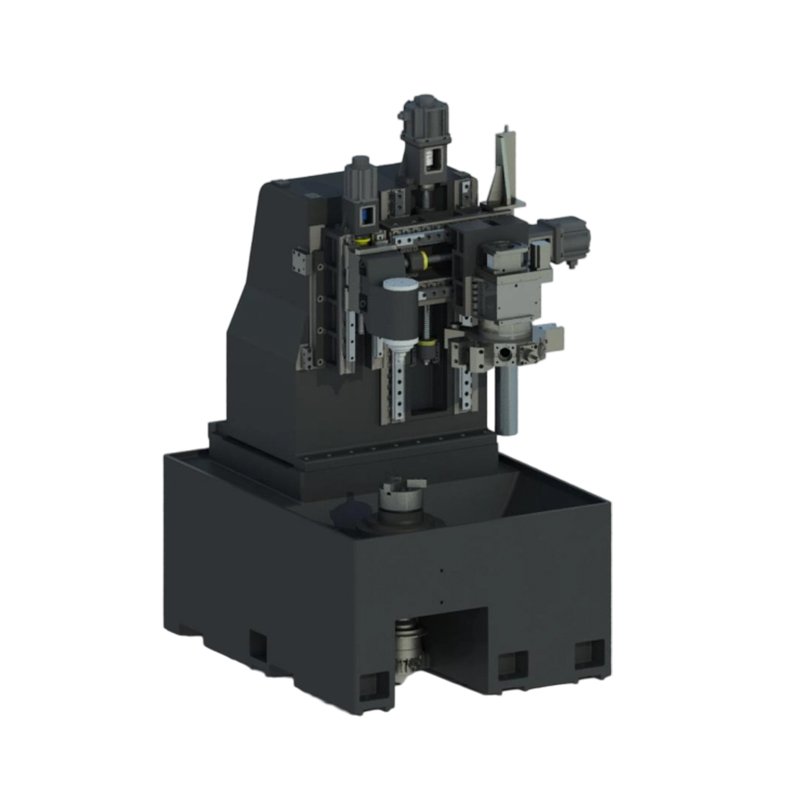

VT Vertical Turning Center High-speed Series

VT Vertical Turning Center High-speed Series

Product Description:

Intelligent Turning & Milling Compound Machine

Product Details

Features

Modular Design: all VT series equipped with BOSUNMAN high torque power turret; unique vertical design with NC intelligent tailstock optional , to be a powerful tool for disc and shaft machining;
Built-in Electric Spindle : all VT series equipped with BOSUNMAN high-speed, high-precision built-in electric spindle;
Compound Processing: optional with Y-axis module to realize compound processes such as turning , milling and drilling.

Automatic reloading to improve machining efficiency.

Product Data

Series

VT ()

VT （） M

VT （） Y

Index

Standard Vertical Lathe

Standard Vertical Lathe + Power Turret

Standard Vertical

Lathe + Y-axis Module

VT45/50/55 Series Parameters
Model	VT45/50	VT45/50M	VT45/50Y	VT55	VT55M	VT55Y	Unit
Spindle-1 Type	A2-6/A2-8	A2-6/A2-8	A2-6/A2-8	A2-8	A2-8	A2-8	JIS
Spindle-1 Through Hole / Through Bar Diameter	Ø76/Ø50	Ø76/Ø50	Ø76/Ø50	Ø87/Ø75	Ø87/Ø75	Ø87/Ø75	mm
Spindle-1 Chuck Size	10	10	10	12	12	12	“
Spindle-1 Power（ S1/S3）	22/27	22/27	22/27	30/37	30/37	30/37	kw
Spindle-1 Torque（ S1/S3）	170/340	170/340	170/340	290/580	290/580	290/580	N·m
Spindle-1 Max. Speed	4500	4500	4500	3000	3000	3000	rpm
Spindle-2 Type	——	——	——	——	——	——	JIS
Spindle-2 Through Hole / Through Bar Diameter	——	——	——	——	——	——	mm
Spindle-2 Chuck Size	——	——	——	——	——	——	“
Spindle-2 Power（ S1/S3）	——	——	——	——	——	——	kw
Spindle-2 Torque（ S1/S3）	——	——	——	——	——	——	N·m
Spindle-2 Max. Speed	——	——	——	——	——	——	rpm
Max. Machining Diameter	Ø400	Ø400	Ø400	Ø450	Ø450	Ø450	mm
Max. Machining Length	450	450	450	500	500	500	mm
Y Travel	——	——	300 ( ±150）	——	——	300 ( ±150）	mm
Tailstock（ Optional）	MT4	MT4	——	MT4	MT4	——	MT
Turret Type	Servo	Power	Power	Servo	Power	Power	——
Turret Specification	100	100	100	100	100	100	——
Tool Specification	□25/Ø40	□25/Ø40	□25/Ø40	□25/Ø40	□25/Ø40	□25/Ø40	mm
Power Tool Holder Type	——	BMT65	BMT65	——	BMT65	BMT65	——

VT65/85/100 Series Parameters
Model	VT65	VT65M	VT65Y	VT85	VT85M	VT85Y	VT100	VT100M	VT100Y	Unit
Spindle-1 Type	A2-11	A2-11	A2-11	A2-15	A2-15	A2-15	A2-15	A2-15	A2-15	JIS
Spindle-1 Through Hole / Through Bar Diameter	Ø131/Ø120	Ø131/Ø120	Ø131/Ø120	Ø220/Ø200	Ø220/Ø200	Ø220/Ø200	Ø220/Ø200	Ø220/Ø200	Ø220/Ø200	mm
Spindle-1 Chuck Size	18	18	18	24	24	24	24	24	24	“
Spindle-1 Power（ S1/S3）	37/45	37/45	37/45	45/55	45/55	45/55	45/55	45/55	45/55	kw
Spindle-1 Torque（ S1/S3）	1200/2000	1200/2000	1200/2000	2500/4000	2500/4000	2500/4000	3500/5000	3500/5000	3500/5000	N·m
Spindle-1 Max. Speed	1000	1000	1000	600	600	600	500	500	500	rpm
Spindle-2 Type	——	——	——	——	——	——	——	——	——	JIS
Spindle-2 Through Hole / Through Bar Diameter	——	——	——	——	——	——	——	——	——	mm
Spindle-2 Chuck Size	——	——	——	——	——	——	——	——	——	“
Spindle-2 Power（ S1/S3）	——	——	——	——	——	——	——	——	——	kw
Spindle-2 Torque（ S1/S3）	——	——	——	——	——	——	——	——	——	N·m
Spindle-2 Max. Speed	——	——	——	——	——	——	——	——	——	rpm
Max. Machining Diameter	Ø650	Ø650	Ø650	Ø800	Ø800	Ø800	Ø1000	Ø1000	Ø1000	mm
Max. Machining Length	750	750	750	750	750	750	1000	1000	1000	mm
Y Travel	——	——	300 ( ±150）	——	——	300 ( ±150）	——	——	300 ( ±150	mm
Tailstock（ Optional）	MT5	MT5	——	MT6	MT6	——	MT6	MT6	——	MT
Turret Type	Servo	Power	Power	Servo	Power	Power	Servo	Power	Power	——
Turret Specification	125	125	125	160	160	160	160	160	160	——
Tool Specification	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	□32/Ø60	mm
Power Tool Holder Type	——	BMT75	BMT75	——	BMT75	BMT75	——	BMT75	BMT75	——
