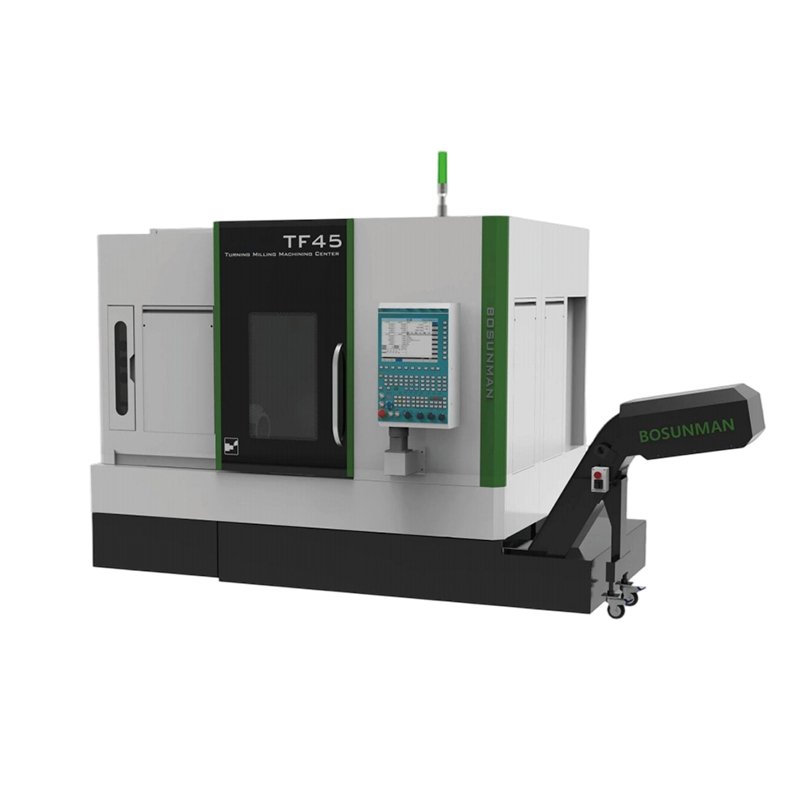

TF Turning & Milling Compound Center

BOSUNMAN comprehensive and intelligent compound machine tools fully boost the transformation and upgrading of industrial sectors !

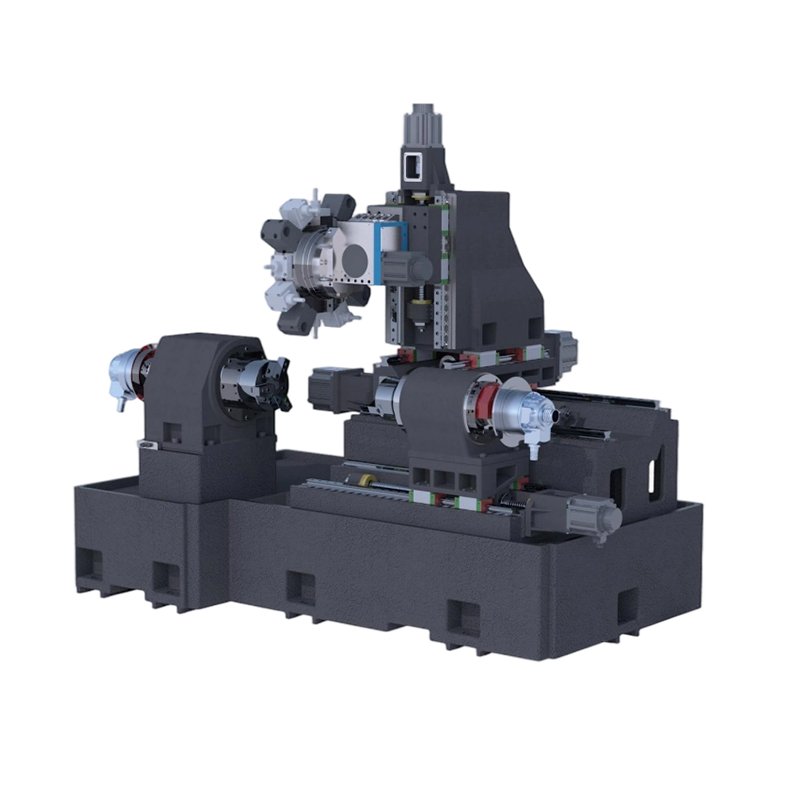

Structure: low gravity stable base, large-span stepped rail, large travel box-type Y-axis;
Large Travel Box-type Y: high rigidity box-type Y axis, up to 200mm (±100mm) . The large travel allows for a optional 16- position power turret and a max tool magzine of 32 tools;
Modular Design: flexible switch on sub-spindle and NC tailstock to satisfy compound multi-operation and long shaft processing.
Powerful Machining: spindle and sub-spindle can be selected with the same specification for stronger machining capability.

Each axis can be optionally equipped with grating ruler for superior precision performance.

Series	TF ()	TF （） S
Index	Standard	Dual Spindle

TF Series Parameters
Model	TF35	TF35S	TF45	TF45S	TF55	TF55S	Unit
Spindle-1 Type	A2-5	A2-5	A2-6/A2-8	A2-6/A2-8	A2-8	A2-8	JIS
Spindle-1 Through Hole / Through Bar Diameter	Ø56/Ø45	Ø56/Ø45	Ø76/Ø50	Ø76/Ø50	Ø86/Ø75	Ø86/Ø75	mm
Spindle-1 Chuck Size	6	6	8	8	10	10	“
Spindle-1 Power（ S1/S3）	11/15	11/15	22/27	22/27	30/37	30/37	kw
Spindle-1 Torque（ S1/S3）	52.5/105	52.5/105	170/340	170/340	290/580	290/580	N·m
Spindle-1 Max. Speed	6000	6000	4500	4500	3000	3000	rpm
Spindle-2 Type	——	A2-4	——	A2-6/A2-8	——	A2-8	JIS
Spindle-2 Through Hole / Through Bar Diameter	——	Ø31/Ø20	——	Ø76/Ø50	——	Ø86/Ø75	mm
Spindle-2 Chuck Size	——	5	——	8	——	10	“
Spindle-2 Power（ S1/S3）	——	7.5/11	——	22/27	——	30/37	kw
Spindle-2 Torque（ S1/S3）	——	21/42	——	170/340	——	290/580	N·m
Spindle-2 Max. Speed	——	8000	——	4500	——	3000	rpm
Max. Machining Diameter	Ø280	Ø280	Ø370	Ø370	Ø450	Ø450	mm
Max. Machining Length	400	400	550	550	750	750	mm
Y Travel	120 ( ±60）	120 ( ±60）	160 ( ±80）	160 ( ±80）	240 ( ±120）	240 ( ±120）	mm
Tailstock（ Optional）	MT3	——	MT4	——	MT5	——	MT
Turret Type	Power	Power	Power	Power	Power	Power	——
Turret Specification	80	80	100	100	100（ 15T）	100（ 15T）	——
Tool Specification	□25/Ø32	□25/Ø32	□25/Ø50	□25/Ø50	□25/Ø50	□25/Ø50	mm
Power Tool Holder Type	BMT55	BMT55	BMT65	BMT65	BMT65	BMT65	——
