TW Dual-Turret Turning & Milling Compound Center

High Eficiency, High Accuracy Turning & Milling Compound Center A powerful tool for machining slender shaft

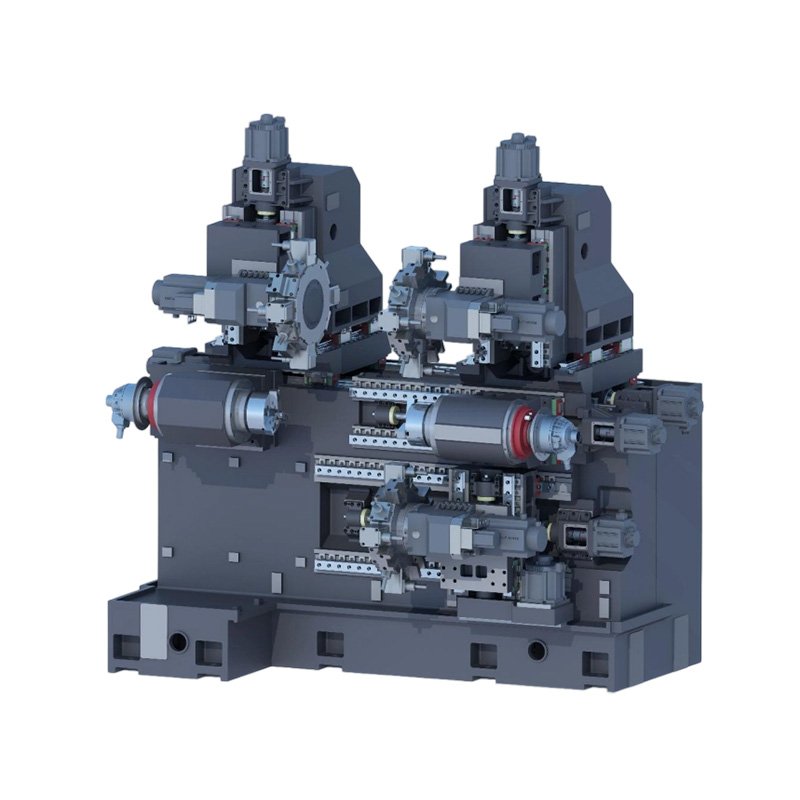

Modular Design: optional for upper & lower position dual-turret or three-turret, to meet diverse machining needs; synchronized machining with multiple turrets further increases efficiency;
High-precision Machining: opposed position dual electric spindles, synchronized upper and lower turrets effectively resolve deformation issue of machining slender shaft;
Large Travel Box-type Y: high rigidity box-type Y axis, up to 200mm (±100mm) . The large travel allows for a optional 15- position power turret and a max tool magzine of 30 tools;
Powerful Machining: each axis can be optionally equipped with grating ruler for superior precision performance.

Series	TW ()	TW （） T
Index	Standard	Three-turret

TW Series Parameters
Model	TW35	TW35T	TW45	TW45T	TW55	TW55T	Unit
Spindle-1 Type	A2-5	A2-5	A2-6/A2-8	A2-6/A2-8	A2-8	A2-8	JIS
Spindle-1 Through Hole / Through Bar Diameter	Ø56/Ø45	Ø56/Ø45	Ø76/Ø50	Ø76/Ø50	Ø87/Ø75	Ø87/Ø75	mm
Spindle-1 Chuck Size	6	6	8	8	10	10	“
Spindle-1 Power（ S1/S3）	11/15	11/15	22/27	22/27	30/37	30/37	kw
Spindle-1 Torque（ S1/S3）	52.5/105	52.5/105	170/340	170/340	290/580	290/580	N·m
Spindle-1 Max. Speed	6000	6000	4500	4500	3000	3000	rpm
Spindle-2 Type	A2-5	A2-5	A2-6/A2-8	A2-6/A2-8	A2-8	A2-8	JIS
Spindle-2 Through Hole / Through Bar Diameter	Ø56/Ø45	Ø56/Ø45	Ø76/Ø50	Ø76/Ø50	Ø87/Ø75	Ø87/Ø75	mm
Spindle-2 Chuck Size	6	6	8	8	10	10	“
Spindle-2 Power（ S1/S3）	11/15	11/15	22/27	22/27	30/37	30/37	kw
Spindle-2 Torque（ S1/S3）	52.5/105	52.5/105	170/340	170/340	290/580	290/580	N·m
Spindle-2 Max. Speed	6000	6000	4500	4500	3000	3000	rpm
Max. Machining Diameter	Ø320	Ø320	Ø370	Ø370	Ø450	Ø450	mm
Max. Machining Length	500	500	550	550	750	750	mm
Y Travel	120 ( ±60）	120 ( ±60）	160 ( ±80）	160 ( ±80）	200 ( ±100）	200 ( ±100）	mm
Upper Turret Type	Power	Power*2	Power	Power*2	Power	Power*2	——
Upper Turret Specification	80	80	100	100	125	125	——
Upper Tool Specification	□25/Ø32	□25/Ø32	□25/Ø40	□25/Ø40	□32/Ø50	□32/Ø50	mm
Power Tool Holder Type	BMT55	BMT55	BMT65	BMT65	BMT75	BMT75	——
Lower Turret Type	Power	Power	Power	Power	Power	Power	——
Lower Turret Specification	80	80	100	100	125	125	——
Lower Tool Specification	□25/Ø32	□25/Ø32	□25/Ø40	□25/Ø40	□32/Ø50	□32/Ø50	mm
Power Tool Holder Type	BMT55	BMT55	BMT65	BMT65	BMT75	BMT75	——
