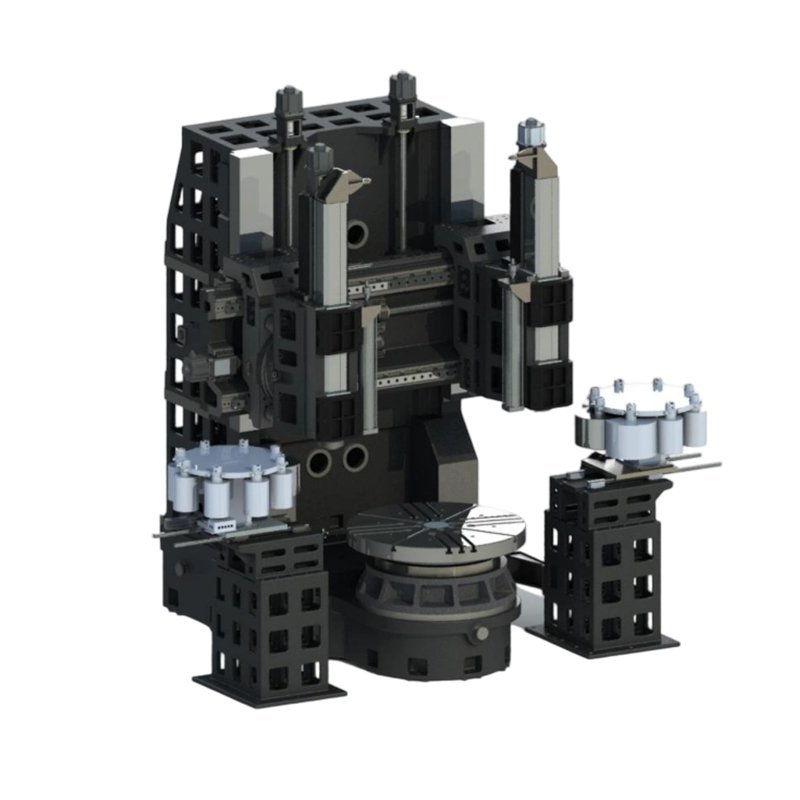

Intelligent Turning & Milling Compound Machine
Modular Design: all VT series equipped with BOSUNMAN high torque power turret; unique vertical design with NC intelligent tailstock optional , to be a powerful tool for disc and shaft machining;
Intelligent Processing: inverted vertical CNC lathe, movable spindle to replace robot arm to complete workpiece grasping and achieve better feeding accuracy. The excellent automation system can perform the entire process of loading, compound processing, unloading and measuring.
Compound Processing: optional with Y-axis module to realize automatic compound processes such as turning, milling, drilling, loading and unloading, to improve machining efficiency.
Series | VT （） M/ATC | VT （） MG/ATC |
Index | Vertical Turning & Milling Compound | Vertical Turning, Milling & Grinding Compound |
VT125/140/160 Series Parameters | |||||||
Model | VT125M | VT125MG | VT140M | VT140MG | VT160M | VT160MG | Unit |
Worktable Size | Ø1250 | Ø1250 | Ø1400 | Ø1400 | Ø1600 | Ø1600 | mm |
Worktable Torque（ S1/S3） | 8000/12000 | 8000/12000 | 8000/12000 | 8000/12000 | 10000/15000 | 10000/15000 | N·m |
Worktable Power（ S1/S3） | 83/99 | 83/99 | 83/99 | 83/99 | 83/99 | 83/99 | kw |
Worktable Max. Speed | 300 | 300 | 300 | 300 | 250 | 250 | rpm |
Milling & Grinding Spindle Type | HSK-T63/100 | HSK-T63/100 | HSK-T63/100 | HSK-T63/100 | HSK-T100 | HSK-T100 | |
Milling & Grinding Spindle Torque （S1/S3） | 48/100 | 48/100 | 48/100 | 48/100 | 70/140 | 70/140 | N·m |
Milling & Grinding Spindle Power （S1/S3） | 15/21 | 15/21 | 15/21 | 15/21 | 25/29 | 25/29 | kw |
Milling & Grinding Spindle Max. Speed | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | rpm |
Milling & Grinding Spindle Tool Magzine | 8 | 8 | 8 | 8 | 8 | 8 | T |
Turning Spindle Type | —— | BBT50 | —— | BBT50 | —— | BBT50 | |
Turning Spindle Tool Magzine | —— | 8 | —— | 8 | —— | 8 | T |
B-axis Torque（ S1/S3） | 750/1250 | 750/1250 | 750/1250 | 750/1250 | 750/1250 | 750/1250 | N·m |
Max. Machining Diameter | Ø1300 | Ø1300 | Ø1500 | Ø1500 | Ø1800 | Ø1800 | mm |
Max. Machining Length | 1300 | 1300 | 1500 | 1500 | 1700 | 1700 | mm |
VT180/260 Series Parameters | |||||||
Model | VT180M | VT180MG | VT260M | VT260MG | Unit | ||
Worktable Size | Ø1800 | Ø1800 | Ø2600 | Ø2600 | mm | ||
Worktable Torque（ S1/S3） | 20000/25000 | 20000/25000 | 30000/35000 | 30000/35000 | N·m | ||
Worktable Power（ S1/S3） | 125/145 | 125/145 | 125/145 | 125/145 | kw | ||
Worktable Max. Speed | 180 | 180 | 150 | 150 | rpm | ||
Milling & Grinding Spindle Type | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | |||
Milling & Grinding Spindle Torque （S1/S3） | 200/350 | 200/350 | 200/350 | 200/350 | N·m | ||
Milling & Grinding Spindle Power （S1/S3） | 83/99 | 83/99 | 83/99 | 83/99 | kw | ||
Milling & Grinding Spindle Max. Speed | 10000 | 10000 | 10000 | 10000 | rpm | ||
Milling & Grinding Spindle Tool Magzine | 8 | 8 | 8 | 8 | T | ||
Turning Spindle Type | —— | BBT50 | —— | BBT50 | |||
Turning Spindle Tool Magzine | —— | 8 | —— | 8 | T | ||
B-axis Torque（ S1/S3） | 750/1250 | 750/1250 | 750/1250 | 750/1250 | N·m | ||
Max. Machining Diameter | Ø2100 | Ø2100 | Ø2800 | Ø2800 | mm | ||
Max. Machining Length | 1700 | 1700 | 2500 | 2500 | mm | ||
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and creative ideas.
The T family CNC machine tools are innovative equipment developed by MYD to serve the personalized and rapid iteration characteristics of the industry. Based on the design concepts of platformization, modularization, and intelligence, this series offers a variety of creative combinations to meet your highly imaginative and rich creativity.
The TT series is a opposed twin-spindle, twin-turret CNC machine tool launched by MYD; the opposed twin-turret design enables multi-process (turning, milling, etc.) composite machining and multi-step integrated processing, providing strong support for your production!
