High-precision grinding, single clamping, efficient multi-process machining!
High-precision grinding, single clamping, efficient multi-process machining!
High-precision grinding, single clamping, multi-process efficient machining!

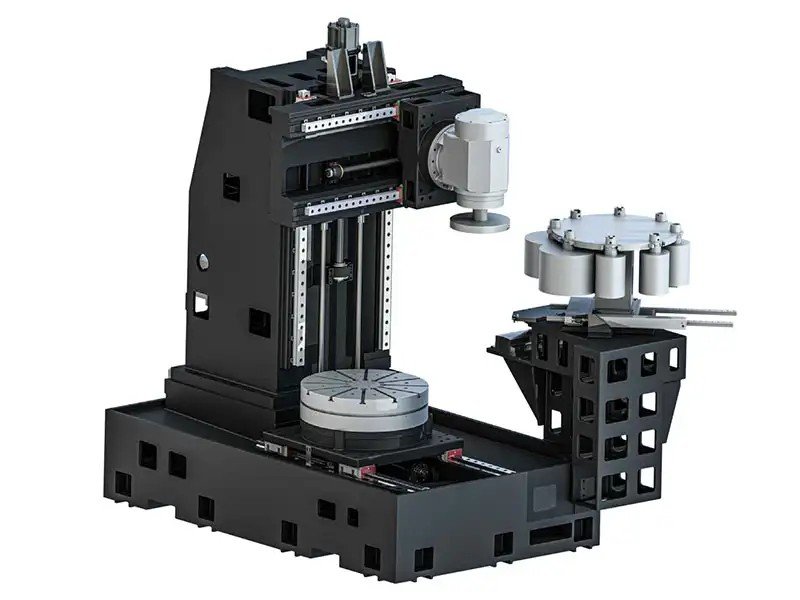

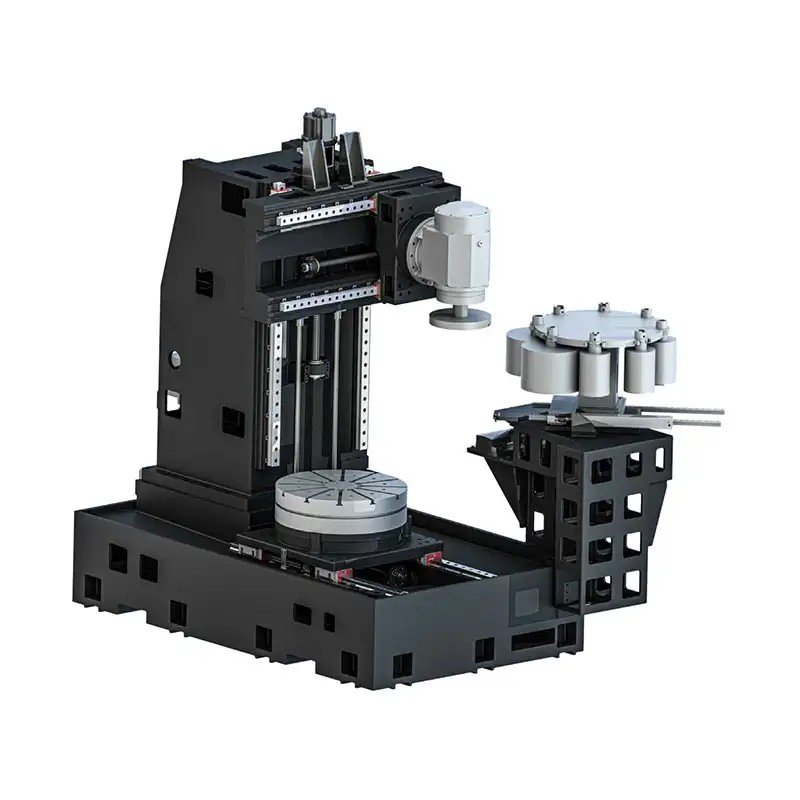

The GM-V series is a submicron vertical follow-up grinding machine, equipped with options such as high-speed high-torque direct-drive torque table, orthogonal B-axis, and non-orthogonal B-axis. It provides ultra-high precision multi-process machining solutions ranging from follow-up machining, turning-milling-grinding compound machining to multi-axis linkage machining.

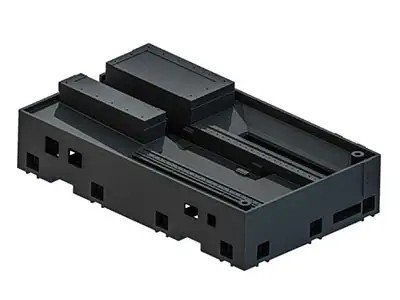

● Machine Bed : HT300A high-strength dense castings, integral cast machine bed.
● B-axis : Torque motor direct drive technology + high-precision encoder, compact structure, featuring high rigidity, large torque, high precision, with optional non-orthogonal B-axis.

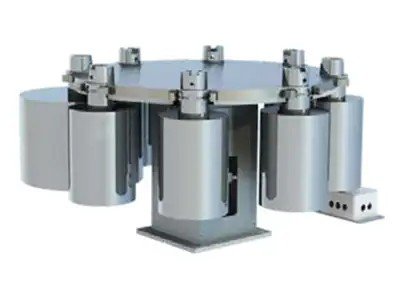

● Tool Magazine : 8/16/32-position ATC umbrella-type tool magazine optional, fast tool change.

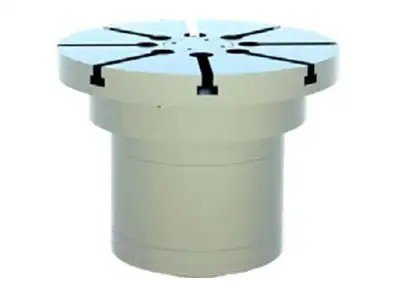

● Turntable : High-torque high-precision direct-drive torque turntable (optional hydrostatic direct-drive turntable).

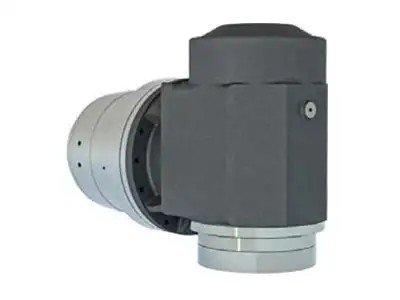

● Tool Spindle : Maximum speed 24000 rpm, maximum torque 340 Nm high-precision HSK turning-milling-grinding electric spindle; optional locking mechanism, capable of turning function.
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
High-precision grinding, single clamping, efficient multi-process machining!
The GM series is a composite grinding machine integrating submicron turning and grinding. It can perform integrated processing such as turning of various eccentric shafts, shafts and bushings, internal and external cylindrical grinding, taper grinding, thread grinding, groove grinding, and profile grinding with follow-up forming wheels.
