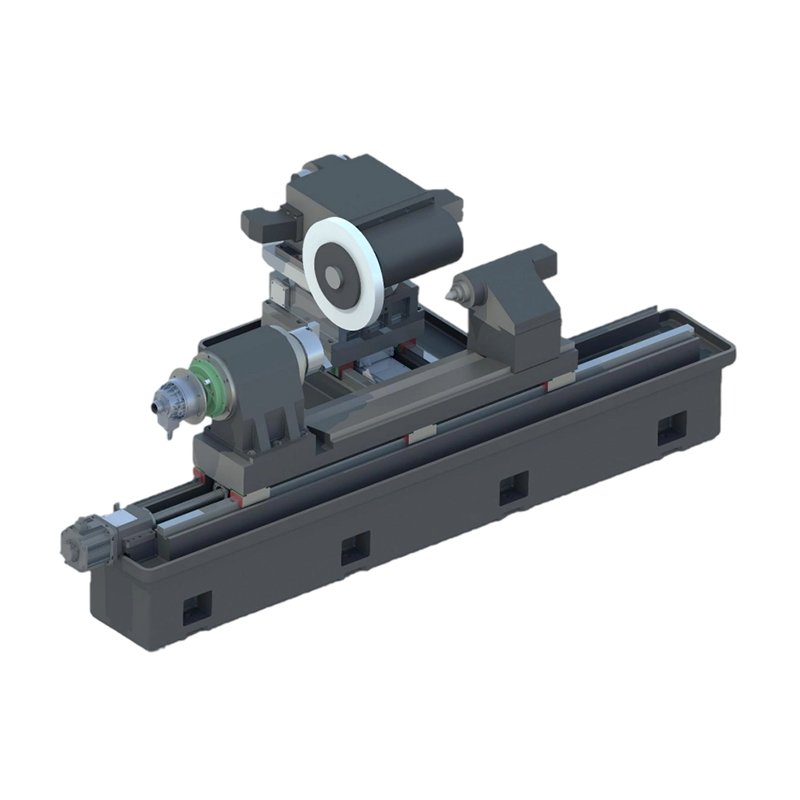

GM Servo Compound Grinding Machine

Submicron Servo Turning & Grinding Compound

Turning / Grinding Compound: B-axis rotary table equipped with external / internal cylindrical grinding head and a tool holder. By rotating B-axis, these components can be switched at will, to fulfill turning & milling compound machining.
Grinding Fuction: by combining the X/Z linear axes and the B/C rotary axes, various grinding functions can be realized, including external / internal cylindrical grinding, conical grinding, thread grinding, groove grinding, and servo contour grinding.
Rotary Dressing: a rotary dresser is employed, paired with a high-rigidity diamond roll, to enable multiple types of grinding wheel dressing.

Series	GM ()
Index	Standard

GM Series Parameters
Model	GM36	GM50	Unit
Spindle Type	A2-6	A2-6	JIS
Spindle Through Hole	Ø62	Ø62	mm
Spindle Chuck Size	8	8	“
Spindle Power（ S1/S3）	15/18.5	15/18.5	kw
Spindle Max. Torque（ S1/S3）	105/210	105/210	N·m
Spindle Max. Speed	1000	1000	rpm
External Cylindrical Grinding Head Max. Speed	4500	4500	rpm
External Grinding Wheel diameter	400/500（ Optional）	400/500（ Optional）	mm
Internal Cylindrical Grinding Head Max. Speed	30000	30000	rpm
Internal Grinding Spindle Mounting Diameter	120	120	mm
B Positioning Accuracy	0.0001	0.0001	°
B Repeatability	±3	±3	”
Max. Machining Diameter	Ø360	Ø500	mm
Max. Machining Length	750/1000/1500/2000	750/1000/1500/2000	mm
Tailstock Type	MT5	MT5	——
Quill Stroke	50	50	mm
Trimming Range	±150	±150	μm
Cylindrical Grinding Roughness	Ra0.05	Ra0.05	μm
Interpolation / Taper Grinding Roughness	Ra0.05	Ra0.05	μm
Axial Repeatability	0.001	0.001	mm
Axial Positioning Accuracy	0.004	0.004	mm
