High-precision grinding, single clamping, efficient multi-process machining!
Turning / Grinding Compound: high-speed torque rotary table + high-precision tool holder, to realize one-time processing of turning and grinding.
Grinding Function: by combining the X/Z linear axes and the B/C rotary axes, various grinding functions can be realized, including external / internal cylindrical grinding, conical grinding, thread grinding, groove grinding, and servo contour grinding.
Dressing System: support diamond roll dressing + diamond pendressing, providing multiple options.
Tool Magzine: 8/16 umbrella tool magzine, to process multi- operations.
Series | GM （） V | GM （） V/B | GM （） VY/B |
Index | Standard Vertical Grinding | B-axis Module | Y-axis + B-axis Module |
GM-V Series Parameters | ||||||||||
Model | GM40V | GM40V/B | GM40VY/B | GM60V | GM60V/B | GM60VY/B | GM85V | GM85V/B | GM85VY/B | Unit |
Worktable Size | Ø400 | Ø400 | Ø400 | Ø600 | Ø600 | Ø600 | Ø850 | Ø850 | Ø850 | mm |
Worktable Torque（ S1/S3） | 850/1500 | 850/1500 | 850/1500 | 850/1500 | 850/1500 | 850/1500 | 1000/1600 | 1000/1600 | 1000/1600 | N·m |
Worktable Power（ S1/S3） | 8.9/15.7 | 8.9/15.7 | 8.9/15.7 | 8.9/15.7 | 8.9/15.7 | 8.9/15.7 | 14.6/16.8 | 14.6/16.8 | 14.6/16.8 | kw |
Worktable Max. Speed | 450 | 450 | 450 | 450 | 450 | 450 | 300 | 300 | 300 | rpm |
Tool Spindle Type | HSK-T63 | HSK-T63 | HSK-T63 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | —— |
Tool Spindle Torque（ S1/S3） | 70/140 | 70/140 | 70/140 | 110/160 | 110/160 | 110/160 | 110/160 | 110/160 | 110/160 | N·m |
Tool Spindle Power（ S1/S3） | 25/29 | 25/29 | 25/29 | 46/50 | 46/50 | 46/50 | 46/50 | 46/50 | 46/50 | kw |
Tool Spindle Max. Speed | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | rpm |
Tool Spindle Tool Magzine | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | T |
B Max. Swing Speed | —— | 72 | 72 | —— | 72 | 72 | —— | 72 | 72 | |
B Torque（ S1/S3） | —— | 750/1250 | 750/1250 | —— | 750/1250 | 750/1250 | —— | 750/1250 | 750/1250 | |
Max. Machining Diameter | Ø500 | Ø600 | Ø1000 | Ø600 | Ø600 | Ø600 | Ø1000 | Ø1000 | Ø1000 | mm |
B Travel | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 。 |
C Travel | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 。 |
Y Travel | —— | —— | ±150 | —— | —— | ±150 | —— | —— | ±250 | |
GM-V Series Parameters | ||||||||||
Model | GM125V | GM125V/B | GM125VY/B | GM160V | GM160V/B | GM160VY/B | Unit | |||
Worktable Size | Ø1250 | Ø1250 | Ø1250 | Ø1600 | Ø1600 | Ø1600 | mm | |||
Worktable Torque（ S1/S3） | 3500/6000 | 3500/6000 | 3500/6000 | 8000/13500 | 8000/13500 | 8000/13500 | N·m | |||
Worktable Power（ S1/S3） | 36.6/44 | 36.6/44 | 36.6/44 | 83.7/99 | 83.7/99 | 83.7/99 | kw | |||
Worktable Max. Speed | 300 | 300 | 300 | 300 | 300 | 300 | rpm | |||
Tool Spindle Type | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | HSK-T100 | —— | |||
Tool Spindle Torque（ S1/S3） | 110/160 | 110/160 | 110/160 | 200/350 | 200/350 | 200/350 | N·m | |||
Tool Spindle Power（ S1/S3） | 46/50 | 46/50 | 46/50 | 83/99 | 83/99 | 83/99 | kw | |||
Tool Spindle Max. Speed | 12000 | 12000 | 12000 | 10000 | 10000 | 10000 | rpm | |||
Tool Spindle Tool Magzine | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | 8/16 | T | |||
B Max. Swing Speed | —— | 72 | 72 | —— | 60 | 60 | ||||
B Torque（ S1/S3） | —— | 750/1250 | 750/1250 | —— | 1500/3000 | 1500/3000 | ||||
Max. Machining Diameter | Ø1300 | Ø1300 | Ø1300 | Ø1600 | Ø1600 | Ø1600 | mm | |||
B Travel | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 240 (±120) | 。 | |||
C Travel | 360 | 360 | 360 | 360 | 360 | 360 | 。 | |||
Y Travel | —— | —— | ±300 | —— | —— | ±300 | ||||
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
High-precision grinding, single clamping, efficient multi-process machining!

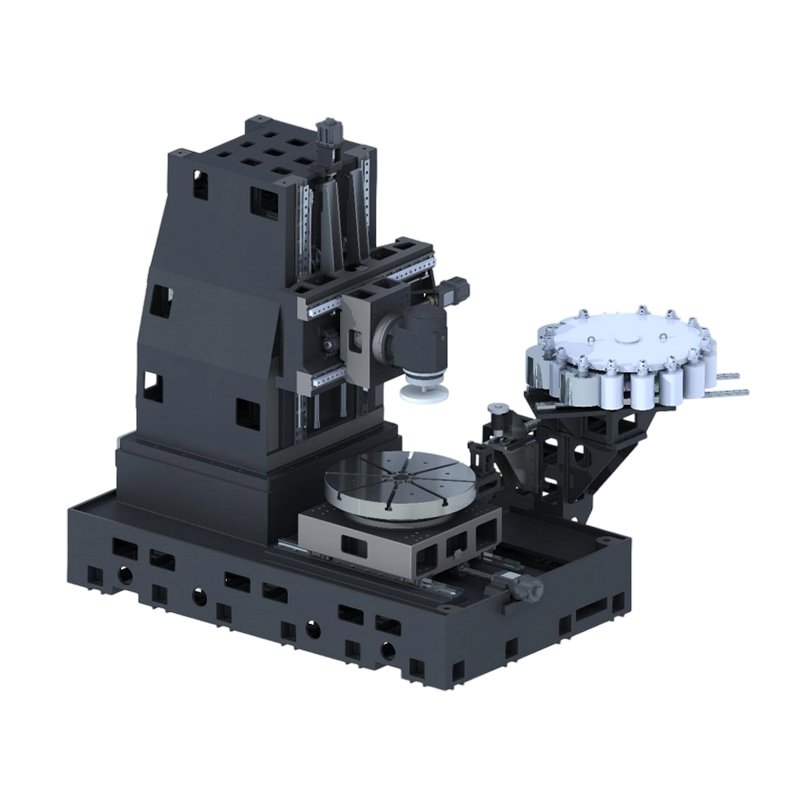

The GM series is a composite grinding machine integrating submicron turning and grinding. It can perform integrated processing such as turning of various eccentric shafts, shafts and bushings, internal and external cylindrical grinding, taper grinding, thread grinding, groove grinding, and profile grinding with follow-up forming wheels.
