Precision machining, precise dressing

Gear profile grinding, impeccable accuracy!

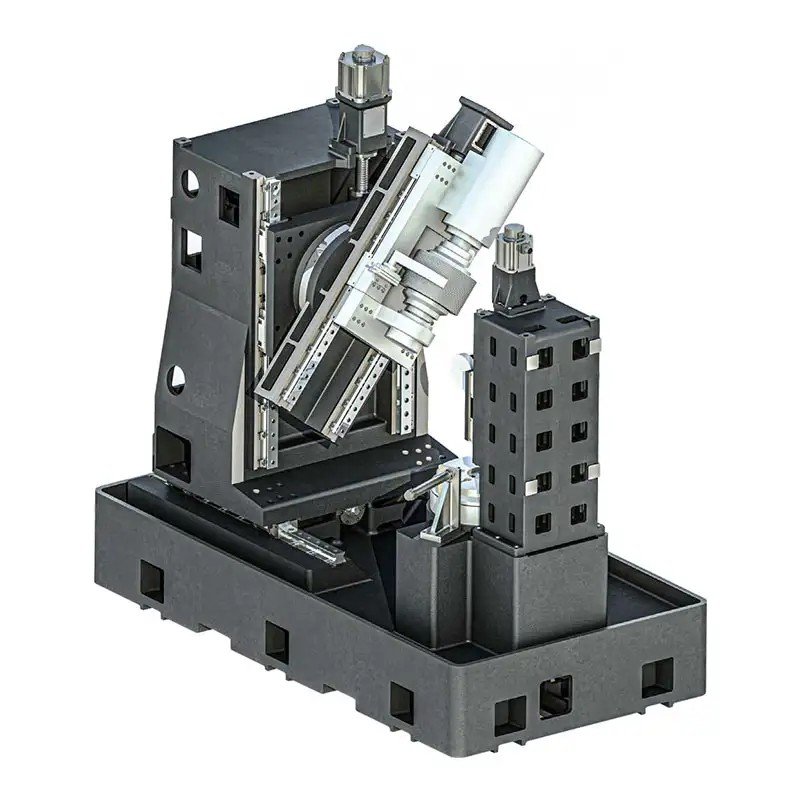

The YW series is equipped with a continuous generating gear grinding machine, with direct drive technology on all rotating axes, enabling precise dressing of the grinding wheel and precise grinding of the workpiece; a user-friendly and specialized gear processing interface allows you to easily achieve high-precision gear machining.

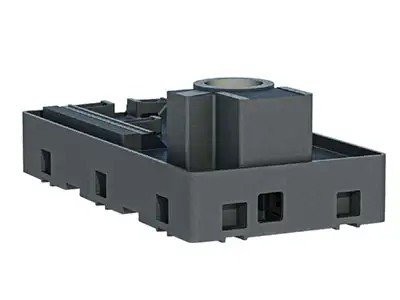

 ● Bed HT300A high-strength dense castings, integral cast bed.

● B axis Torque motor direct drive technology + high-precision encoder, compact structure, featuring high rigidity, large torque, and high precision.

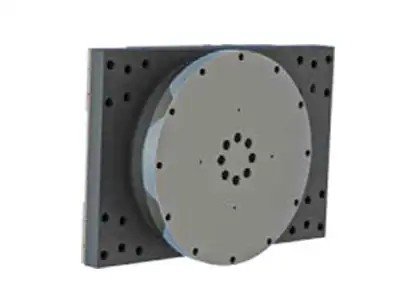

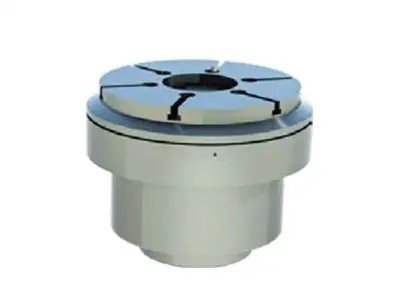

● Rotary table High torque, high precision direct drive torque rotary table (optional hydrostatic direct drive rotary table).

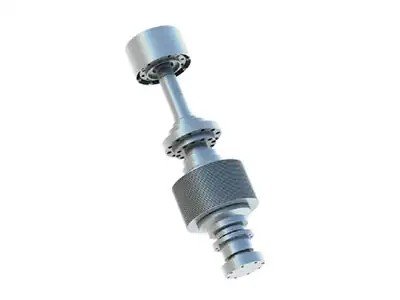

● Grinding wheel shaft High-speed, highly stable grinding wheel spindle, grinding wheel line speed up to 80 m/s, efficient grinding.

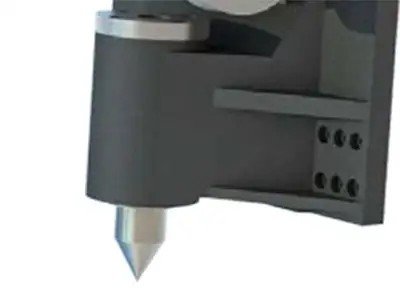

● NC intelligent tailstock Servo fully programmable tailstock, tailstock thrust, position, and speed programmable control.

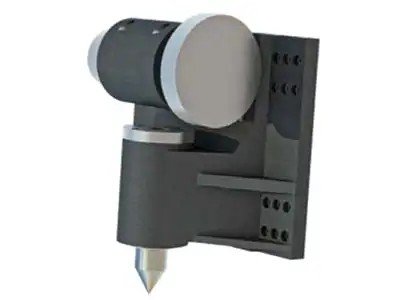

● Grinding wheel dressing device High-speed roller dressing, enabling precise profile dressing of the grinding wheel.
