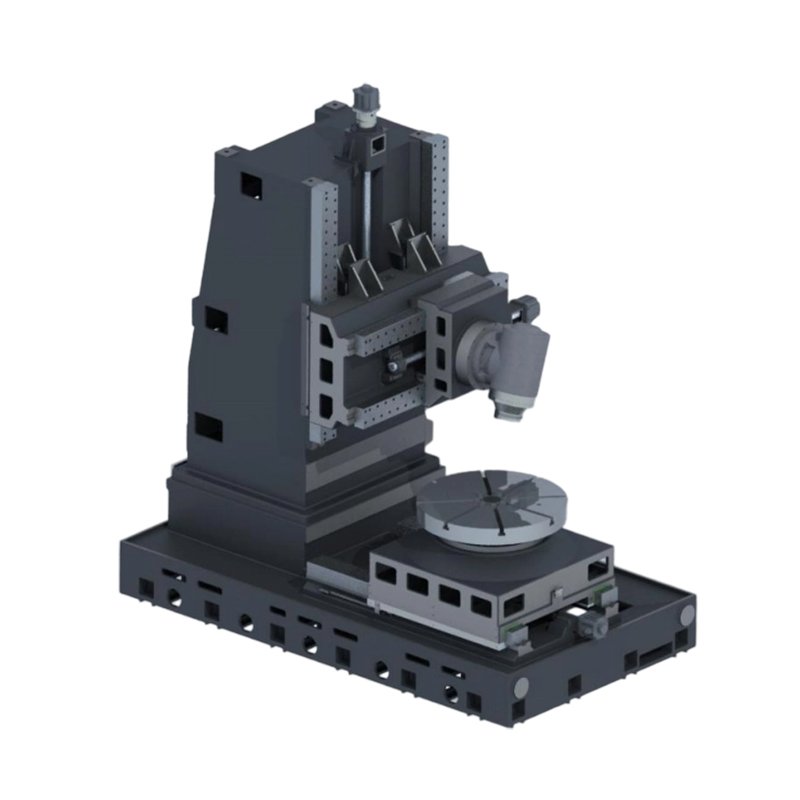

Strong Performance: high-torque / direct-drive torque rotary table + high-rigidity / high-torque tool spindle, support up to 12 gear module processing.
Stable Structure: designed with high-rigidity wide boxway and low gravity center base to be more stable and strong.
Machining Range: external gear machining up to diameter 1500mm, height 600mm.
Series | YT () |
Index | Standard |
YT Series Parameters | ||
Model | YT125 | Unit |
Worktable Size | Ø1250 | mm |
Worktable Torque（ S1/S3） | 8000/13500 | N·m |
Worktable Power（ S1/S3） | 83.7/99 | kw |
Worktable Max. Speed | 300 | rpm |
Tool Spindle Type | HSK-T100 | |
Tool Spindle Torque（ S1/S3） | 340/500 | N·m |
Tool Spindle Power（ S1/S3） | 71/78 | kw |
Tool Spindle Max. Speed | 6000 | rpm |
Tool Spindle Tool Magzine | 8/16 | T |
B Max. Swing Speed | 72 | rpm |
B Torque（ S1/S3） | 750/1250 | N·m |
Max. Machining Diameter | Ø1500 | mm |
B Travel | 240 (±120) | mm |
C Travel | 360 | mm |
Y Travel | ±300 | mm |
Max. Turning (Scraping) Gear Module | 12 | |
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
The YW series is equipped with a continuous generating gear grinding machine, with each rotating shaft featuring direct drive technology, enabling precise dressing of the grinding wheel and accurate grinding of workpieces; the user-friendly and specialized gear processing interface allows you to easily achieve high-precision gear machining.
The YT series is an innovative high-performance gear (scraping) equipment launched by MYD. It supports gear shaping processing with a maximum module of 12, offering excellent rigidity and outstanding performance to provide strong support for your gear processing.
