Grinding Function: YW Series employs generating method for machining, suitable for precision grinding of invloute cylindrical gears, Max. grinding speed 80 m/s.
Spindle System: both grinding wheel spindle and workpiece spindle adopt direct-drive technology, to realize precise dressing of grinding wheel and accurate grinding of workpiece.
Easy Operation: professional interface of gear machining, by simply inputting parameters of workpiece, grinding tool, processing and dressing, YW series will carry out grinding machining
Series | YW () |
Index | Standard |
| YWSeries Parameters | ||
| Model | YW36 | Unit |
| Worktable Size | 0400 | mm |
| Worktable Tonque(SI/S3) | 185/300 | Nm |
| Worktable Power(S1/S3) | 2.9/5 | kw |
| Worktable Max.Speed | 300 | mm |
| Grinding Wheel Spindle Torque(S1/S3) | 50.9/60.1 | Nm |
| Grinding WheelSpindle Power(SI/S3) | 16/19.2 | kw |
| Grinding Wheel Spindle Max.Speed | 10000 | mm |
| B Max.Swing Speed | 409 | mm |
| B Torque | 90 | N ·m |
| Max.Machining Diameter | 0360 | mm |
| A Travel | 90(±45) | mm |
| C Travel | 360 | mm |
| Y Travel | 340 | mm |
| Tailstock Size | MT4 | |
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.

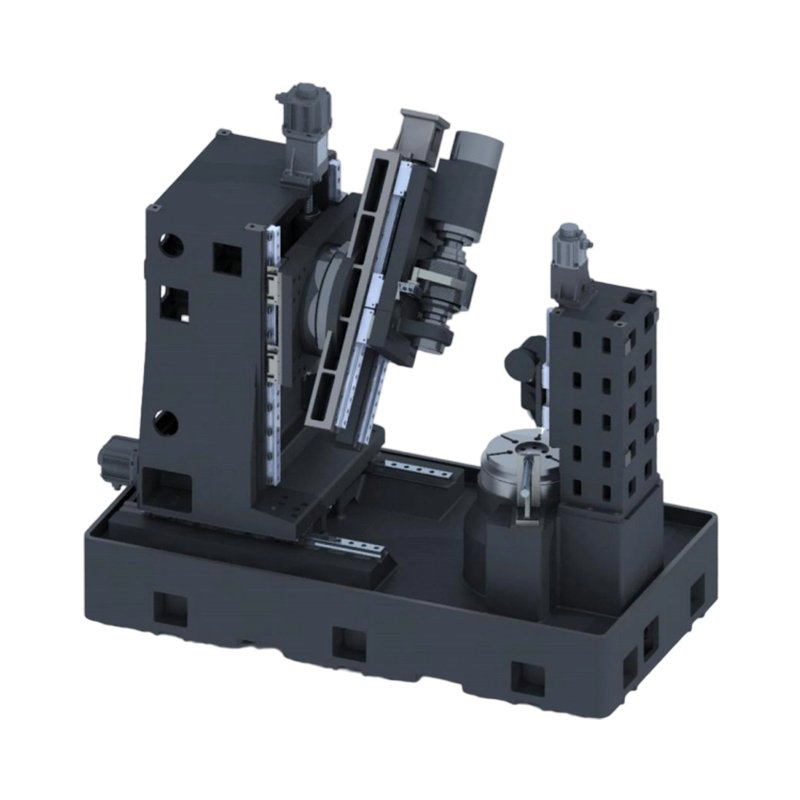

The YW series is equipped with a continuous generating gear grinding machine, with each rotating shaft featuring direct drive technology, enabling precise dressing of the grinding wheel and accurate grinding of workpieces; the user-friendly and specialized gear processing interface allows you to easily achieve high-precision gear machining.
