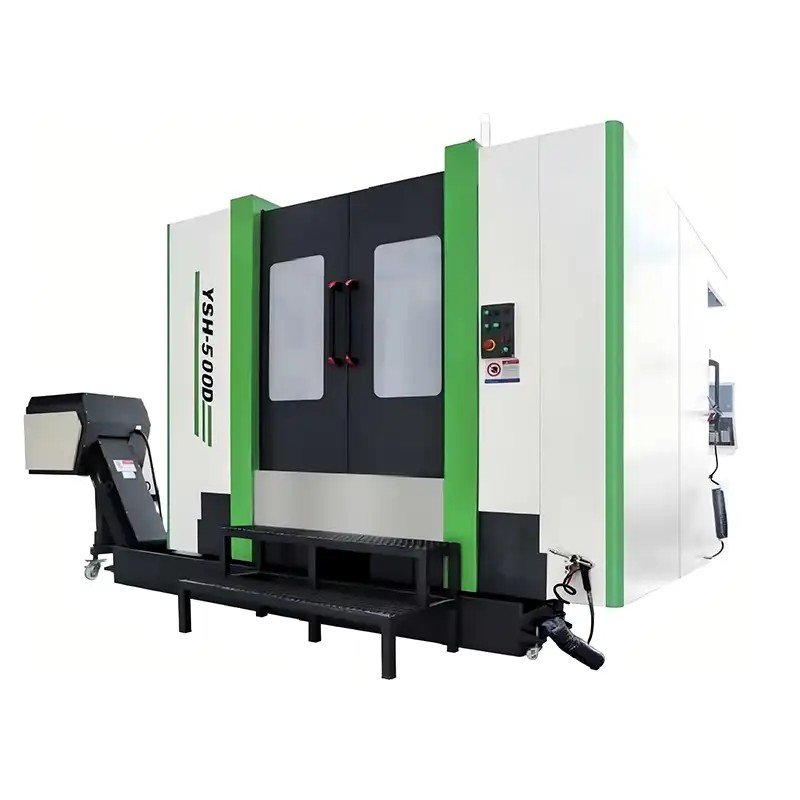

YSH-500D

Product Description:

Widely used in industries such as precision molds, red copper electrodes, shoe mold manufacturing, and mass processing of watch and eyeglass products.

Share To:

  • Add To Cart
  • Inquire Now
  • Product Details
  • Product Data
  • Inquiry Now
  • Product Evaluation
  • You May Like

Product Details

YSH-500D Horizontal-Plus Structure Features:

Suitable for complex machining of box-type parts, it can automatically exchange worktables and tools during the machining process, allowing milling, drilling, reaming, boring, honing, tapping, and other processes on four faces in one clamping. Modern machine tools and control concepts, compact structural design ensure high efficiency and high precision for single or small to medium batch production requirements.

Product Data

YSH Series Parameters

Model

YSH-500

YSH-500D

Item

Specification

Unit

Travel

X/Y/Z Axis

mm

1100/800/600

1100/750/600

Distance from spindle centerline to worktable

mm

100-700

140-740

Distance from spindle nose to worktable center

mm

50-850

0-750

Guideway Type



Three-axis linear guideway

Worktable

Worktable Size L*W

mm

500×500

500×500

Maximum Worktable Load

t

0.6

0.5

Worktable Bolt Holes

mm





T-slot

no/mm

5-18×100

5-18×100

Number of Worktables

pcs

1

1

Worktable Indexing



1°/0.001°

1°/0.001°

Maximum Workpiece Swing Diameter

mm

Center 1100

φ1100

Spindle

Spindle Taper

Type

BBT-40

BBT-40

Spindle Speed

rpm

12000

12000

Spindle Drive Mode



Belt Drive

Feed

X/Y/Z Axis Rapid Feed

m/min

36/36/36

36/36/36

Maximum Cutting Feed

m/min

10

10

Tool Change Device

Tool Change Mode



Disc Type

Tool Holder Specification

Type

BT-40

BT-40

Tool Capacity

tools

24

24

Maximum Tool Diameter (with adjacent tool)

mm

80

80

Maximum Tool Diameter (without adjacent tool)

mm

120

120

Maximum Tool Length

mm

300

300

Maximum Tool Weight

kg

8

8

Fastest Tool Change Time

sec

4.9

4.9

Motor

Spindle Motor (Electric)

kw

11/15.0

11/15.0

Three-axis Servo Motor X/Y/Z

kw

3.0/3.0/3.0

3.0/3.0/3.0

Accuracy

Positioning Accuracy

mm

±0.005

±0.005

Repeat Positioning Accuracy

mm

±0.003

±0.003

Power Requirements

Power Supply Requirements

kva

30

30

Air Pressure Requirements

kg/cm²

6^8

6^8

Machine Dimensions

Length/Width/Height

mm

4520*3560*3230

4732*3904*3230

Weight

t

9

10



Standard Accessories:

★ Arm-type rapid tool change mechanism

★ Automatic oil lubrication system

★ Fully enclosed sheet metal cover

★ Rigid tapping

★ Heat exchanger inside electrical cabinet

★ Water tank and chip collection box

★ Dual work lighting

★ Three-color warning light

★ Automatic power-off system (M30)

★ Labyrinth dust-proof air blowing at spindle nose

★ Foundation bolts and pads

Optional Items

★ Three-axis optical scale

★ Spindle center water outlet system

★Tool Damage Detector

★Automatic Chip Conveyor

★Oil Mist Recovery System

★Disc-type Oil-Water Separator

★Rotary Table (Fourth Axis)

★Automatic Tool Setter
