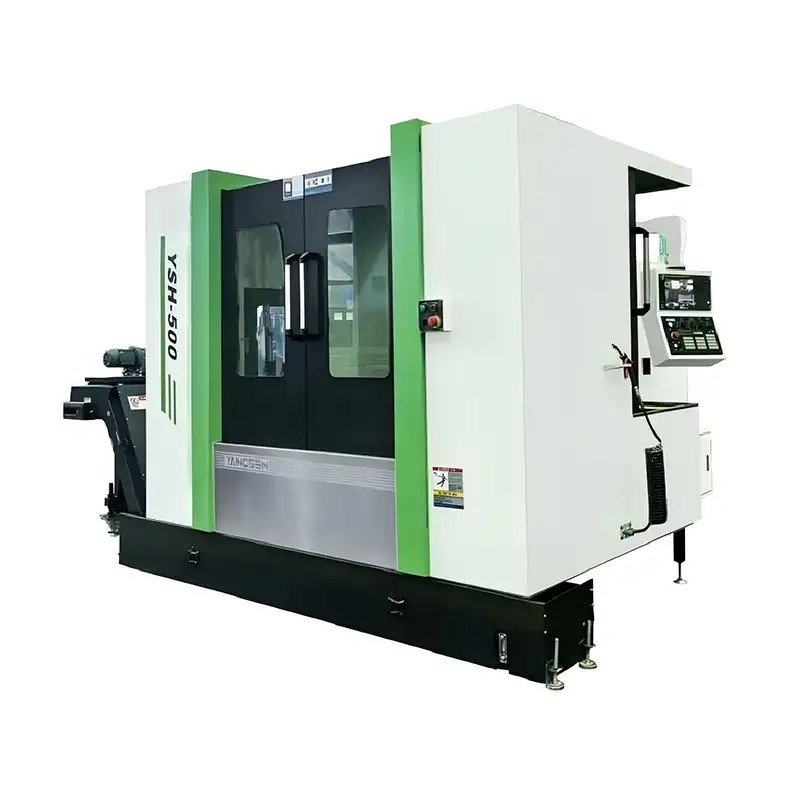

YSH-500

Product Description:

Widely used in industries such as precision molds, red copper electrodes, shoe mold manufacturing, and mass processing of watch and eyeglass products.

Share To:

  • Add To Cart
  • Inquire Now
  • Product Details
  • Product Data
  • Inquiry Now
  • Product Evaluation
  • You May Like

Product Details

YSH-500 Horizontal Plus Structure Features:

Suitable for complex machining of box-type parts, it can automatically exchange worktables and tools during the machining process, allowing milling, drilling, reaming, boring, honing, tapping, and other processes on four faces in one setup.

Modern machine tool and control concepts, compact structural design ensure efficiency and high precision for single or small batch production requirements.



YSH-500 Horizontal Plus Machine Features:

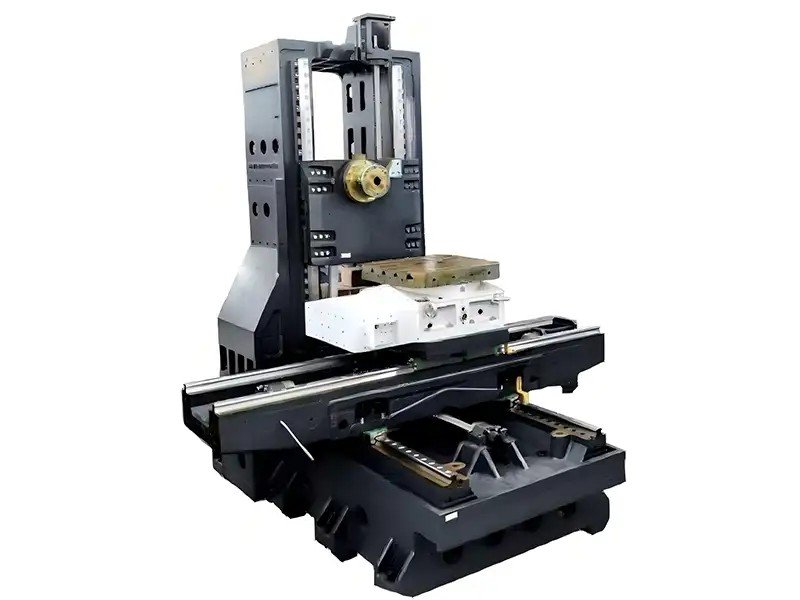

 Bed and Column

Base: Uses advanced finite element analysis software to reasonably optimize rib layout, ensuring strength and rigidity, and guaranteeing stability of precision.

Column: Adopts a herringbone frame structure with longitudinal and transverse ring ribs inside the cavity, providing high torsional and bending rigidity.

Spindle Box: Uses BBT direct connection spindle unit, equipped with automatic constant temperature circulation cooling device, resulting in low spindle temperature rise and minimal thermal deformation, maintaining high machining accuracy.



Single Worktable

Gapless roller structure.

High-efficiency transmission without generating thermal deformation.

Maintenance-free, excellent braking.

Robust structure.

Product Data

Tool Magazine

Spindle

Worktable

Three-axis Travel

Linear Scale

Optional 24T/32T tool magazine

Spindle 12000 rpm,

Optional BBT50, 6000 rpm, with five bearings

500×500 mm

X:1100/Y:800/Z:600 mm

Reserved position for linear scale installation

Optional Heidenhain or FAG linear scale,

Accuracy ±5μm, ensuring machine tool positioning accuracy.



YSH Series Parameters

Model

YSH-500

YSH-500D

Item

Specification

Unit

Travel

X/Y/Z Axis

mm

1100/800/600

1100/750/600

Distance from spindle centerline to worktable

mm

100-700

140-740

Distance from spindle nose to worktable center

mm

50-850

0-750

Guideway Type



Three-axis linear guideway

Worktable

Worktable Size L*W

mm

500×500

500×500

Maximum Worktable Load

t

0.6

0.5

Worktable Bolt Holes

mm





T-slot

no/mm

5-18×100

5-18×100

Number of Worktables

pcs

1

1

Worktable Indexing



1°/0.001°

1°/0.001°

Maximum Workpiece Rotation Diameter

mm

Center 1100

φ1100

Spindle

Spindle Taper

Type

BBT-40

BBT-40

Spindle Speed

rpm

12000

12000

Spindle Drive Mode



Belt drive

Feed

X/Y/Z Axis Rapid Feed

m/min

36/36/36

36/36/36

Maximum Cutting Feed

m/min

10

10

Tool Change Device

Tool Change Mode



Disc type

Tool Holder Specification

Type

BT-40

BT-40

Tool Capacity

tools

24

24

Maximum Tool Diameter (with adjacent tool)

mm

80

80

Maximum Tool Diameter (without adjacent tool)

mm

120

120

Maximum Tool Length

mm

300

300

Maximum Tool Weight

kg

8

8

Fastest Tool Change Time

sec

4.9

4.9

Motor

Spindle Motor (Electric)

kW

11/15.0

11/15.0

Three-axis Servo Motor X/Y/Z

kW

3.0/3.0/3.0

3.0/3.0/3.0

Accuracy

Positioning Accuracy

mm

±0.005

±0.005

Reciprocating Positioning Accuracy

mm

±0.003

±0.003

Power Requirements

Electric Power Requirements

kVA

30

30

Air Pressure Requirements

kg/cm²

6^8

6^8

Machine Tool Dimensions

Length/Width/Height

mm

4520*3560*3230

4732*3904*3230

Weight

t

9

10



Standard Accessories:

★ Arm-type Quick Tool Change Mechanism

★ Automatic Oil Lubrication System

★ Fully Enclosed Sealed Sheet Metal

★ Rigid Tapping

★ Heat Exchanger Inside Electrical Box

★ Water Tank and Chip Collection Box

★ Dual Work Lighting

★ Three-color Warning Light

★ Automatic Power-off System (M30)

★ Labyrinth Dust-proof Air Blowing at Spindle Nose

★ Foundation Screws and Shims

Optional Accessories

★ Three-axis Optical Scale

★ Spindle Center Water Outlet System

★ Tool Breakage Detector

★ Automatic Chip Conveyor

★ Oil Mist Recovery System

★ Disc-type Oil-Water Separator

★ Rotary Table (Fourth Axis)

★ Automatic Tool Setter
