Mainly aimed at high-speed, green (dry cutting) processing of small and medium-sized, large-batch gears in industries such as automotive, reducers, and construction machinery. Processing range: Φ30-Φ800mm, factory inspection accuracy ISO-1328 Grade 6.

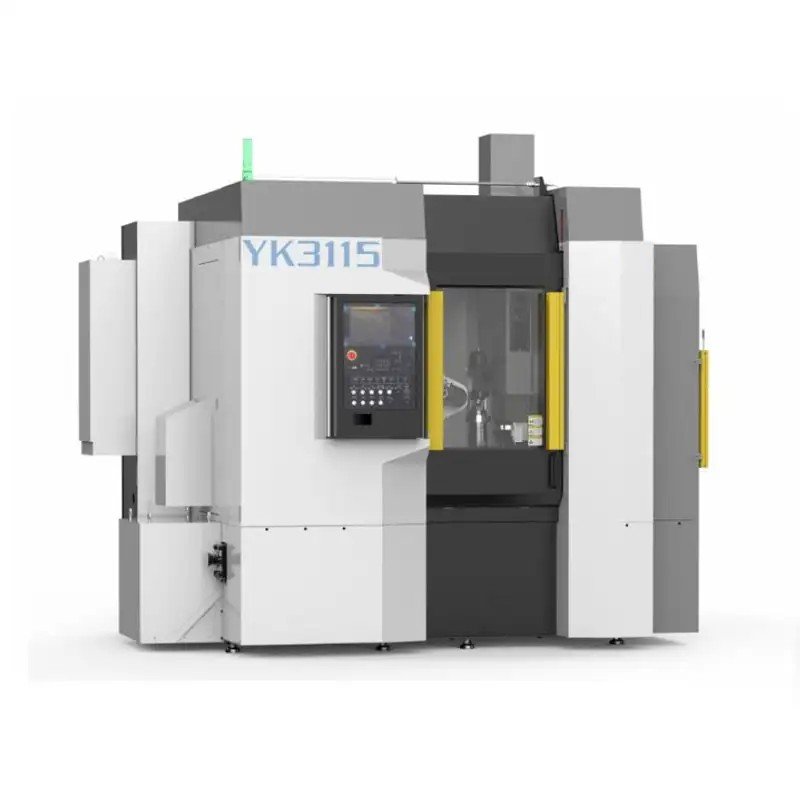

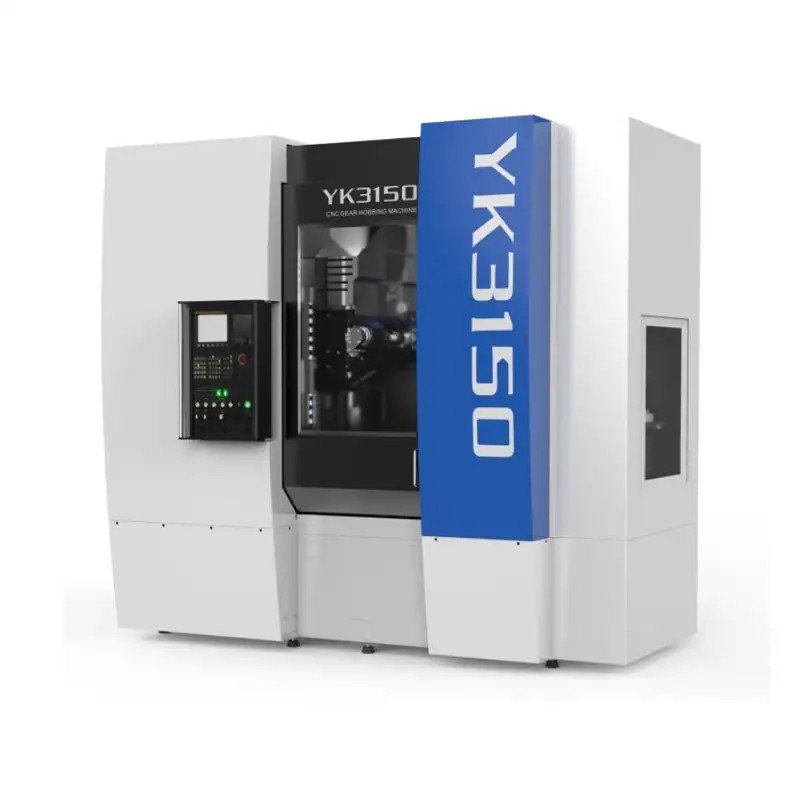

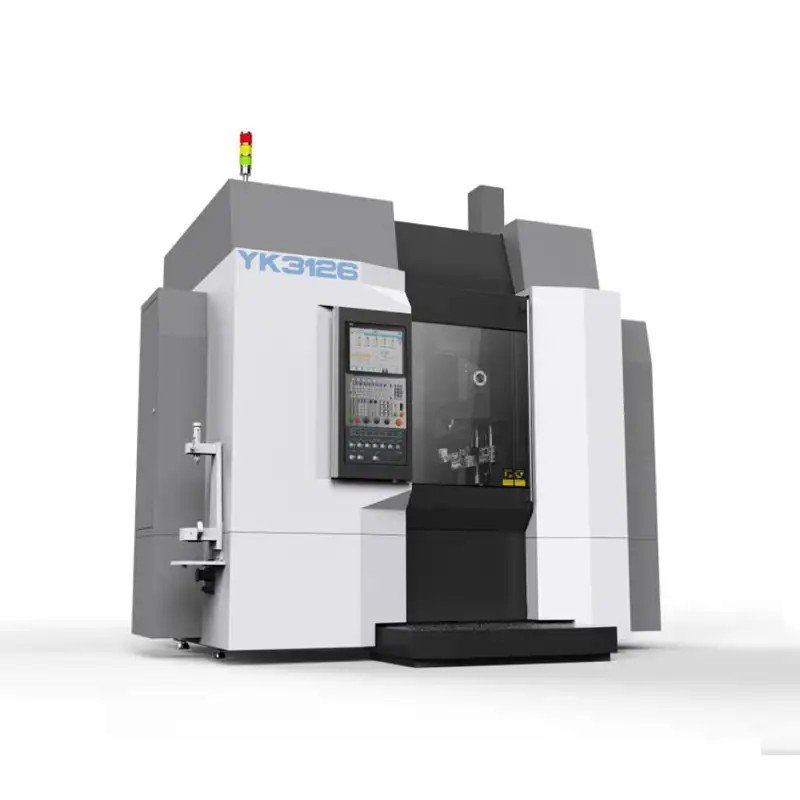

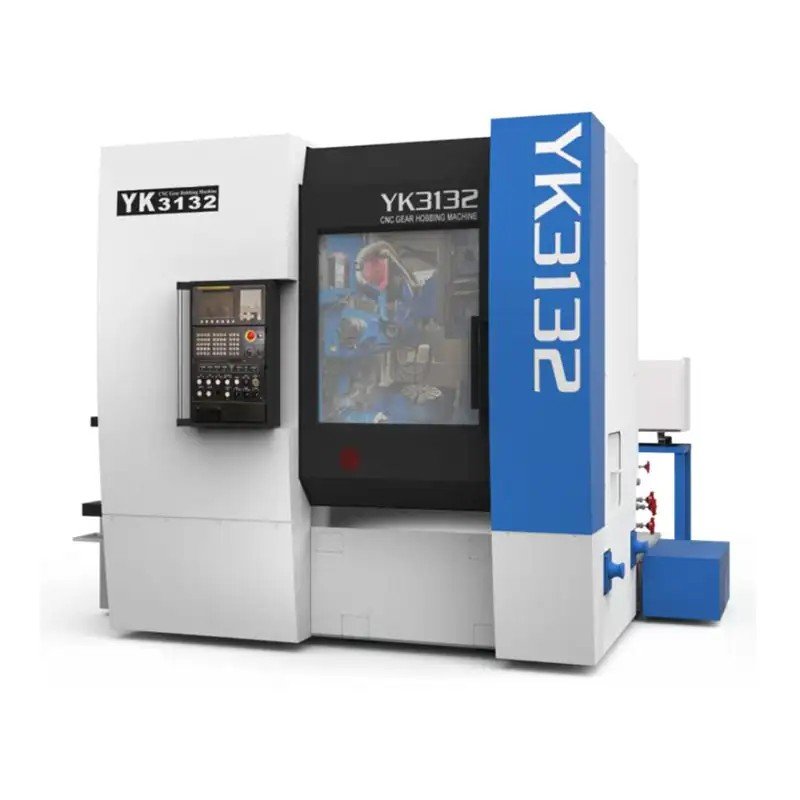

Machine Model | YK3115 | YK3126 | YK3132 | YK3150 |
Maximum Processing Diameter | Φ150mm | Φ260mm | Φ320mm | Φ550mm |
Maximum Cutting Module | 4mm | 6mm | 8mm | 12mm |
Number of Teeth Processed | ≥5 | ≥5 | ≥5 | ≥5 |
Maximum Helix Angle Processed | ±45° | ±45° | ±45° | ±45° |
Maximum Tool Diameter | Φ110mm | Φ150mm | Φ150mm | Φ170mm |
Maximum Tool Length | 180mm | 230mm | 230mm | 260mm |
Diameter of Tool Changeable Arbor | Φ22, 27, 32, | Φ22, 27, 32, 40 | Φ22, 27, 32, 40 | Φ32, 40, 50 |
Maximum Spindle Speed of Tool | 2000r/min | 1200rpm | 600 r/min stepless speed regulation | 600rpm |
Maximum Table Speed | 300n/min | 120rpm | 60n/min | 40rpm |
Spindle Motor Power | 25kW | 15kW | 15kW | 18.5kW |
