Widely used for large-scale processing of internal ring gears and external gears (not suitable for rolling). Processing range: Φ20-Φ300mm, factory inspection accuracy ISO-1328 grade 6.
Mainly focused on precision machining of gears for industries such as automotive, shipbuilding, metallurgy, energy, and mining. Processing range: Φ20-Φ4000mm, factory inspection accuracy ISO-1328 Grade 3.
Mainly for precision processing of gears in industries such as automotive, shipbuilding, metallurgy, energy, and mining. Processing range: Φ20-Φ4000mm, factory inspection accuracy ISO-1328 Grade 3.

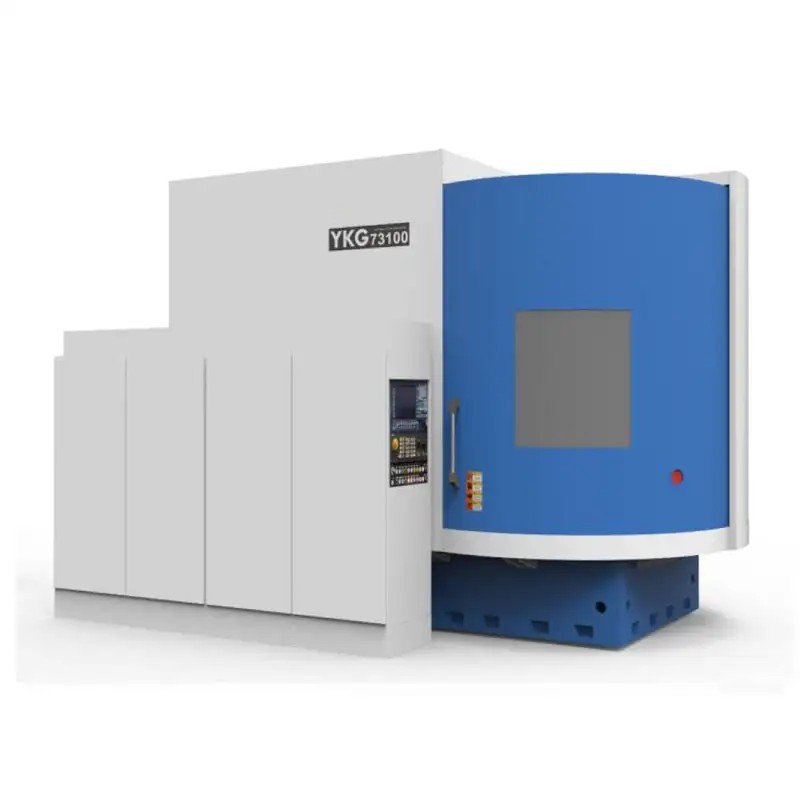

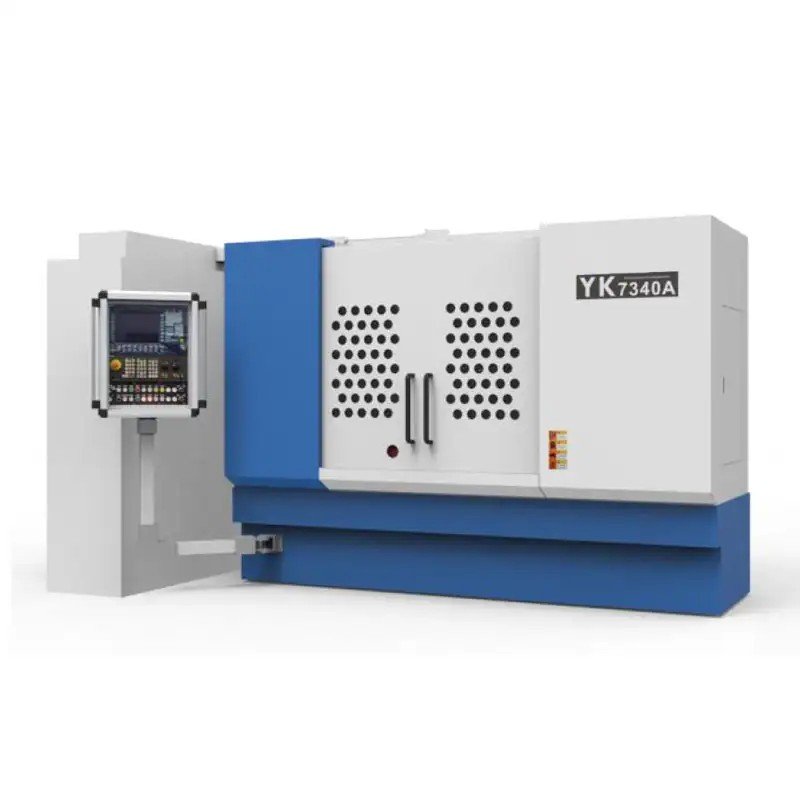

Machine Model | YK7332A | YK7340A | YK7363A | YKG73100 | YK73125 |
Processing Outer Diameter | φ20-320 | φ30-400 | φ100~630 | φ1000 | φ1250 |
Number of Gear Teeth on Workpiece | Unlimited | Unlimited | —— | Unlimited | Unlimited |
Module of Workpiece | 2-10 | 1-14 | 2-20 | 1-20 | 2~25 |
Helix Angle | ±45° | ±45° | ±45° | ±45° | ±35° |
Workpiece Weight | 80kg | 120kg | 1000kg | 5000kg | 7000kg |
Grinding Wheel Specifications | φ50/Φ100/φ200 | φ70-Φ100 | φ350×63×127 | φ270-Φ350 | φ400 |
Grinding Wheel Linear Speed | 50m/s | 50m/s | 63m/s | 50m/s | 50m/s |
Total Power of Machine | 15KW | 25KW | —— | 25KW | 80KW |
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
Widely used for large-scale processing of internal ring gears and external gears (not suitable for rolling). Processing range: Φ20-Φ300mm, factory inspection accuracy ISO-1328 grade 6.
Mainly focused on precision machining of gears for industries such as automotive, shipbuilding, metallurgy, energy, and mining. Processing range: Φ20-Φ4000mm, factory inspection accuracy ISO-1328 Grade 3.
Mainly focused on precision machining of gears for industries such as automotive, shipbuilding, metallurgy, energy, and mining. Processing range: Φ20-Φ4000mm, factory inspection accuracy ISO-1328 Grade 3.
Mainly targeting the automotive, reducer, and construction machinery industries, suitable for precision grinding of medium to large batch involute cylindrical gears. Processing range: Φ20-Φ1500mm, factory inspection accuracy ISO-1328 Grade 3.
