This product can precisely process different materials: steel, copper, aluminum, graphite, glass, etc. It is widely used in industries such as precision molds, red copper electrodes, shoe mold manufacturing, watch and glasses product batch processing.

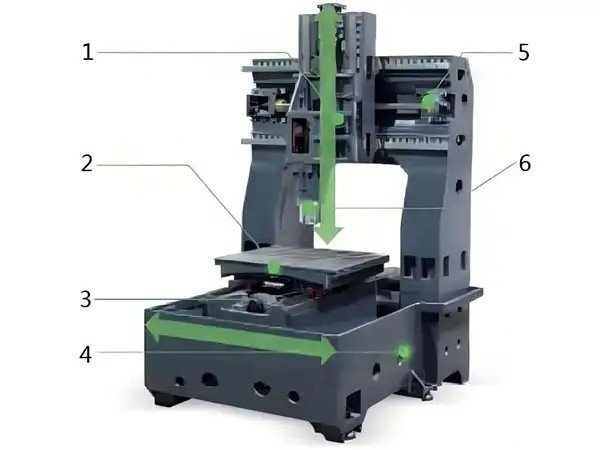

1. A patented spindle box for engraving and milling machines
The inside of the spindle box body is a stepped hole; the electric spindle is installed inside the stepped hole and fixed on the spindle box body using a flange.
2. Worktable
Box-type structure integrally formed with ball screw nut.
3. Linear Scale
Optional Heidenhain or FAG linear scale, accuracy ±5μm, ensuring machine tool positioning accuracy.
4. Base
Multi-layer wall box-type structure, with iron chip rear discharge.
5. A door bridge triangular rib structure
Utility model door bridge triangular rib structure improves the dynamic and static rigidity of the machine tool and enhances machining accuracy.
6. Optional direct-coupled BBT40 spindle
Applicable configuration
Standard configuration includes servo tool magazine; HSK-E40 electric spindle; graphite-grade steel plate protective cover; laser tool setter; oil mist collection device, etc.
Stable accuracy
Full closed-loop linear scale, high positioning accuracy, effectively suppresses positioning errors caused by ball screw thermal expansion.
System stability
Equipped with German Siemens 828D system, stable and feature-rich.
