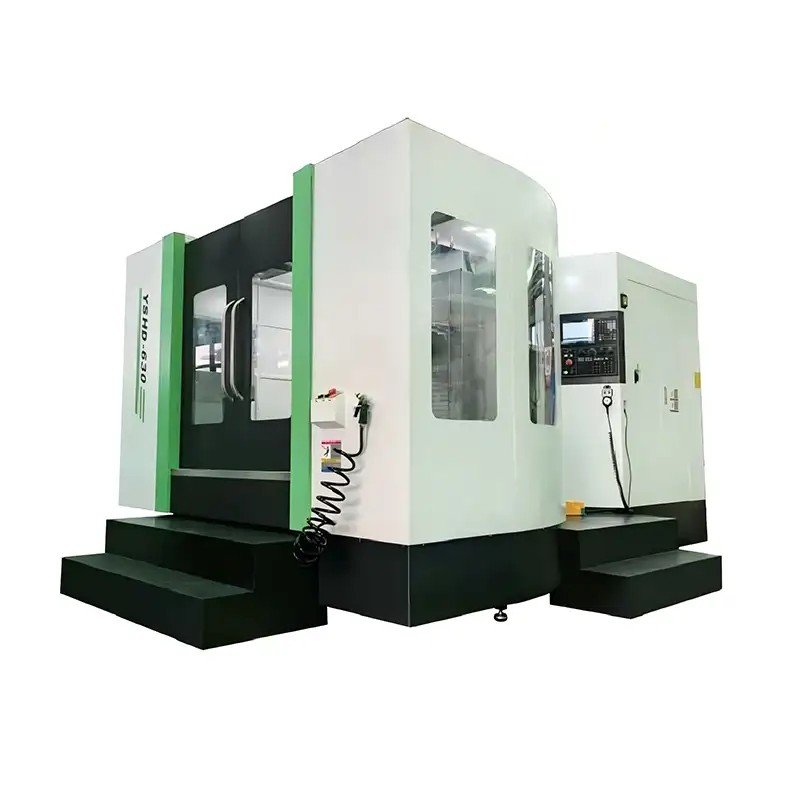

The machine tool adopts a T-shaped main structure with a fully movable column design, providing good rigidity.
The machine tool adopts a T-shaped main structure with a fully movable column design, offering good rigidity. It is suitable for complex machining of box-type parts. During the machining process, it can automatically change tools and perform milling, drilling, reaming, boring, shaping, and tapping on four faces in a single setup. The modern machine tool and control concepts, along with a compact structural design, ensure high efficiency and high precision for single-piece or small to medium batch production requirements.

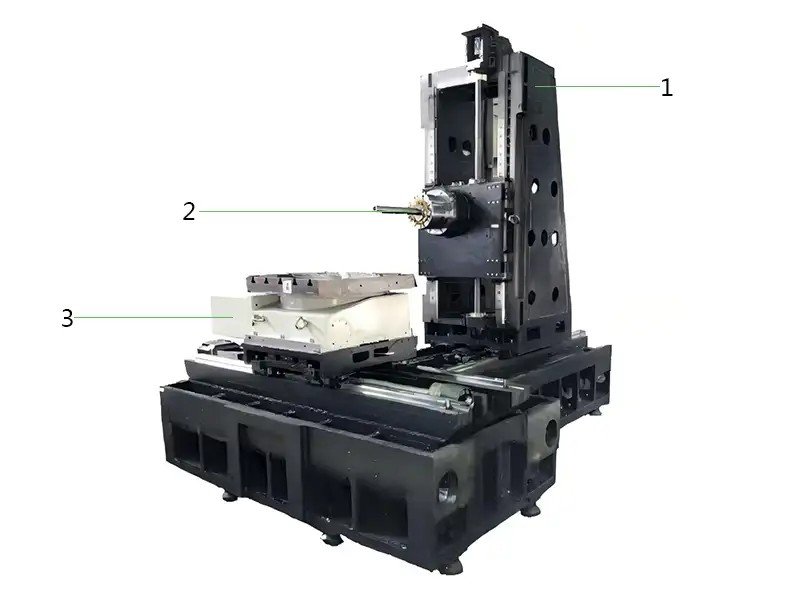

1. Bed and Column
● The main body of the machine tool adopts an inverted T-shaped structure with a fully movable column design, providing good rigidity.
● The casting patterns use a combination of aluminum and wood, resin sand casting, and HT300 cast iron.
● Designed using finite element analysis software with optimized M-shaped rib layout to ensure strength and rigidity, making all components
● Performance indicators reach optimal levels, ensuring stability of precision.
2. Spindle
● Equipped with 6 high-rigidity bearings;
● 190mm outer diameter Taiwan original BBT50 spindle;
● The spindle end has a labyrinth air-blowing device to protect the spindle;
● The spindle is equipped with ring spray to improve machining quality, standard FANUC high-torque wide-range motor βilP30/8000, with stronger heavy cutting capability.
3. Dual Pallet/4-Axis Rotary Table
● The CNC rotary table uses high-rigidity nickel-chromium alloy copper turbine, wear-resistant and durable, with high indexing stability;
● Dual strong locking devices with extra-large locking surfaces, resistant to heavy cutting;
● Uses three-piece high-precision clutch tooth positioning, repeat positioning accuracy reaches 5".
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
This product uses an internationally popular inverted T-shaped moving column horizontal machining center, suitable for complex machining of box-type parts. It can perform four-sided machining such as milling, hole locking, hole expansion, reaming, and tapping in a single setup, and is especially suitable for deep hole boring.
This product uses an internationally popular inverted T-shaped moving column horizontal machining center, suitable for complex machining of box-type parts. It can perform milling, drilling, reaming, boring, and tapping on four surfaces in a single setup, and is especially suitable for deep hole boring.
The machine tool adopts a T-shaped main structure with a fully movable column design, providing good rigidity.
