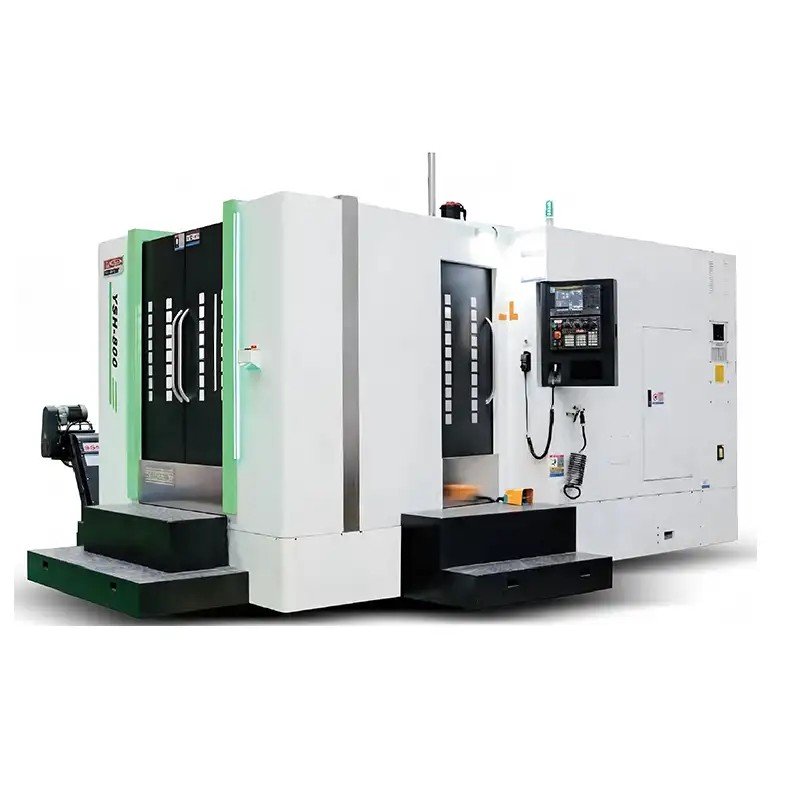

This product features a positive T design with a rotating worktable structure, an extra-wide guide rail structure, and a standard configuration of a high-torque, high-speed motor. It can be optionally equipped with an indexing worktable, making it suitable for machining various complex parts. It is the preferred equipment for cavity machining in automotive engines and the 5G field.
This product adopts a positive T design, worktable rotary structure, ultra-wide guide rail structure, standard configuration with high torque high-speed motor, optional exchange worktable, suitable for processing various complex parts, and is the preferred equipment for automotive engines and 5G cavity processing.

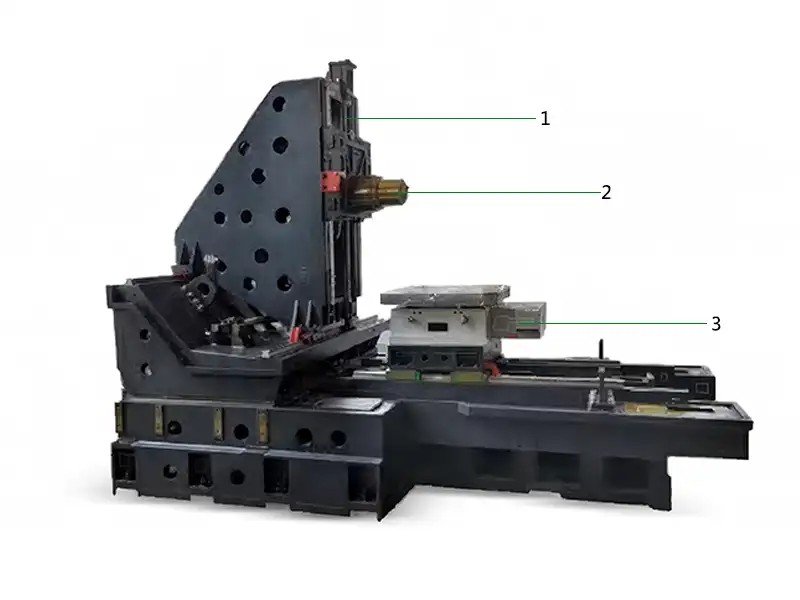

1. Bed and Column
● Column with equilateral triangular structure, arranged with multiple layers of stiffeners to enhance machine stability;
● Positive T structure bed, X-axis stepped layout, increased linear guide span, rigid support;
● Uses high-strength Rexroth roller guide rails, high load capacity, stable precision.
2. Spindle
● Equipped with 6 high-rigidity bearings;
● Outer diameter 190mm Taiwan original BBT50 spindle;
● Spindle end with labyrinth air blowing device to protect the spindle;
● Spindle equipped with ring spray to improve machining quality, standard FANUC high torque wide-range motor βi1P30/8000, stronger heavy cutting capability.
3. Double Exchange Worktable / Four-axis Rotary Table
● Enables workpiece exchange to improve machining efficiency;
● Workpieces placed externally for easy clamping;
● High-rigidity alloy turbine, wear-resistant, high positioning accuracy;
● Heavy locking to reduce deformation and withstand heavy cutting.
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
This product features a positive T design with a rotating worktable structure, an extra-wide guide rail structure, and a standard configuration of a high-torque, high-speed motor. It can be optionally equipped with an indexing worktable, making it suitable for machining various complex parts. It is the preferred equipment for cavity machining in automotive engines and the 5G field.
