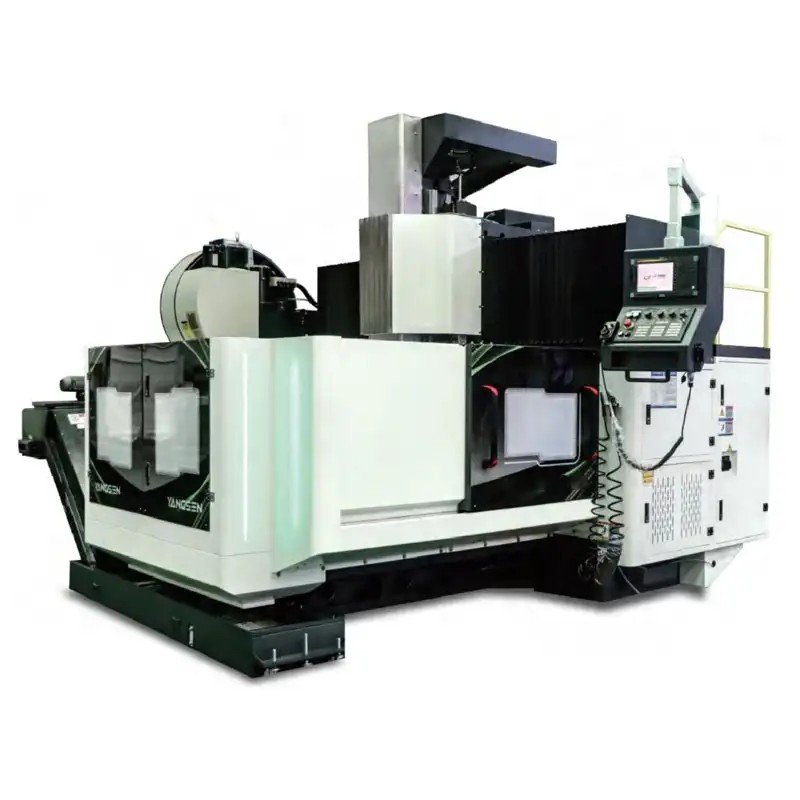

YSMV Series

Product Description:

Large size 500x500 heavy-duty design. Original size 460x460;

Share To:

  • Add To Cart
  • Inquire Now
  • Product Details
  • Product Data
  • Inquiry Now
  • Product Evaluation
  • You May Like

Product Details

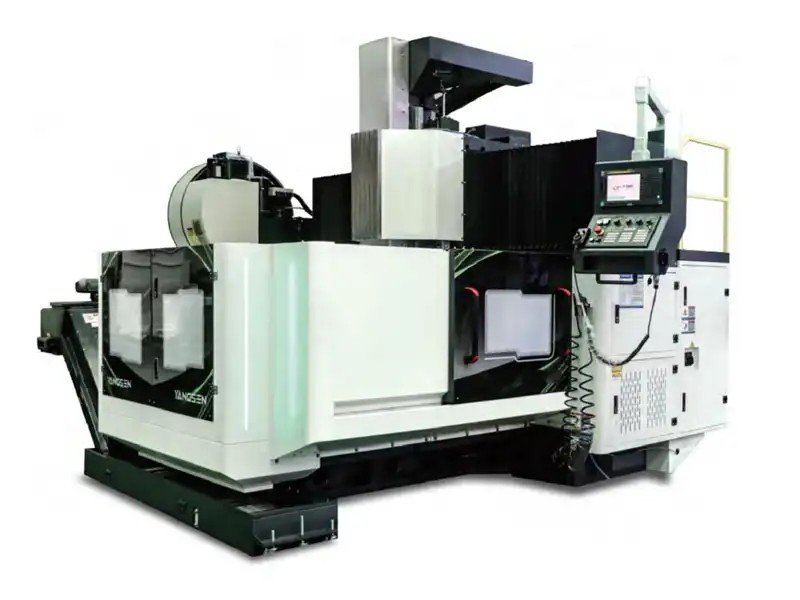

Features of YSMV Series Gantry:

The gantry machine tool has strong rigidity, symmetrical structure, and high stability. By continuously optimizing component structures, it improves the dynamic performance of the product, achieving high power, high torque, high efficiency, and high precision machining. It is suitable for large-scale processing fields such as shipbuilding, metallurgy, mining machinery, power energy, construction machinery, and heavy machinery.

Product Data

1. Square Ram2. Gantry Moving Nut Structure3. Base Structure

● Large size 500x500 heavy-duty design. Original size 460x460;

● Built-in direct connection design. Reduces power transmission loss from spindle motor to spindle.

● X-axis uses moving nut transmission, with three-point support in the middle for more stable screw rotation accuracy, while bearing capacity is large, cutting vibration resistance is good, which can improve machine tool dynamic characteristics, enhance precision stability and service life.

● Compared to double rail design, rigidity increased by 50%;

● Compared to four rail design, more symmetrical and evenly distributed, reducing power loss caused by multi-rail slider resistance;

● 3-meter wide worktable. Base linear guide rail 2.1 meters with 0.7 support span ratio.

4. Nitrogen Counterbalance5. Crossbeam Structure6. Column Structure

● Reduces motor load and screw bearing force, extending screw and motor service life,

● Improves Z-axis acceleration, ensuring machining accuracy.

● Stepped L-shaped design enhances rigidity;

● Concave C-shaped structure offers better bending resistance;

● Large section size design;

● Finite element analysis.

● Column ultra-wide design of 1.28m,

● Reduces overall cutting vibration, making the machine tool as stable as a rock.



YSMV Series Parameters

Model

YSMV-1517



YSMV-2217



YSMV-2817



YSMV-3018

YSMV-3021



YSMV-5021



YSMV-7021

Item

Specification

Unit

Travel

X-axis travel

mm















Y-axis travel

mm

1500

2200

2800

3000

3000

5000

7000

Z-axis travel

mm

1700

1700

1700

1700

2100

2100

2100

Distance from spindle nose to worktable

mm

800

800

800

800

1000

1000

1000

Rail type



80-890

80-890

80-890

80-890

200-1200

200-1200

200-1200

Gantry width



XYZ heavy-duty roller linear guide

Ram cross-section size



1700

1700

1700

1700

2100

2100

2100

Worktable

Worktable size L*W

mm

1500×1400

2200×1400

2700×1400

2700×1400

3200×1700

5000×1700

6400×1800

Maximum worktable load

t

2

6

7

8

10

18

25

T-slot

no/mm

28*200

28*200

28*200

28*200

28*200

28*200

28*200

Spindle

Spindle type

type

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

Spindle speed

rpm

6000

6000

6000

6000

6000

6000

6000

Spindle drive mode



Direct drive spindle

Feed

X/Y/Z axis rapid feed

m/min

2012/12/12

2012/12/12

2012/12/12

2012/12/12

2012/12/12

2010/12/12

2008/12/12

Maximum cutting feed

m/min

10

10

10

10

8

8

8

Tool changer





Optional 24/40/60T

Motor

Spindle motor (electric motor)

Nm

143-259

143-259

143-259

143-259

143-259

143-259

140-283

Three-axis servo motor XMZ

Nm

36/36/36

36/36/36

36/36/36

36/36/36

36/36/36

36/36/36

38/30/30

Accuracy execution standard GBT25658.1-2010

Positioning accuracy

mm

0.012/0.012/0.012

0.015/0.012/0.012

0.02/0.012/0.012

0.02/0.012/0.012

0.03/0.02/0.015

0.03/0.02/0.015

0.045/0.02/0.015

Repeat positioning accuracy

mm

0.008/0.008/0.08

0.008/0.008/0.08

0.010/0.010/0.08

0.010/0.010/0.08

0.018/0.015/0.01

0.018/0.015/0.01

0.035/0.015/0.01

Power requirements

Electric power requirements

kVA

40

40

40

40

40

40

50

Air pressure requirements

kg/cm²

6^8

6^8

6^8

6^8

6^8

6^8

6^8

Machine tool dimensions

Length/Width/Height

mm

4126*4712*3941

6674*4712*3941

7212*4712*3977

7412*4712*3977

9250*5318*5350

13050*5318*5350

17000*5318*5350

Weight

t

16

18

20

22

28

35

56

Model

YSMV-3027



YSMV-4027



YSMV-9027

YSMV-5030



YSMV-7030



YSMV-9030



YSMV-10030

Item

Specification

Unit

Travel

X-axis travel

mm















Y-axis travel

mm

3000

4000

9000

5000

7000

9000

10000

Z-axis travel

mm

2700

2700

2700

3000

3000

3000

3000

Distance from spindle nose to worktable

mm

1300

1300

1300

1300

1300

1300

1300

Rail type



150-1450

150-1450

150-1450

150-1450

150-1450

150-1450

150-1450

Gantry width



XYZ heavy-duty roller linear guideway

Ram cross-section size



2700

2700

2700

3000

3000

3000

3000

Worktable

Worktable size L*W

mm

3200×2200

4000×2200

8800×2200

4600×2600

6400×2600

8800×2600

10000×2600

Maximum worktable load

t

12

18

35

22

25

35

40

T-slot

no/mm

28*200

28*200

28*200

28*200

28*200

28*200

28*200

Spindle

Spindle type

type

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

BBT-50

Spindle speed

rpm

6000

6000

6000

6000

6000

6000

6000

Spindle drive mode



Direct drive spindle

Feed

X/Y/Z axis rapid feed

m/min

2012/12/12

2010/12/12

2006/12/2

2010/12/12

2008/12/12

2006/12/12

2006/12/12

Maximum cutting feed

m/min

10

10

6

8

8

6

6

Tool changer





Optional 24/40/60T

Motor

Spindle motor (electric motor)

Nm

143-259

143-259

140-283

143-259

140-283

140-283

140-283

Three-axis servo motor XMZ

Nm

36/36/36

36/36/36

38/30/30

36/36/36

38/30/30

38/30/30

38/30/30

Accuracy execution standard GBT25658.1-2010

Positioning accuracy

mm

0.03/0.02/0.015

0.03/0.02/0.015

0.055/0.02/0.015

0.03/0.02/0.015

0.03/0.02/0.015

0.055/0.02/0.015

0.045/0.02/0.015

Repeat positioning accuracy

mm

0.018/0.015/0.01

0.022/0.015/0.01

0.045/0.015/0.01

0.018/0.015/0.01

0.022/0.015/0.01

0.045/0.015/0.01

0.035/0.015/0.01

Power requirements

Electric power requirements

kVA

40

40

40

40

50

50

50

Air pressure requirements

kg/cm²

6^8

6^8

6^8

6^8

6^8

6^8

6^8

Machine tool dimensions

Length/Width/Height

mm

8657*6004*5287

10808*6304*5531

21800*6004*5287

12168*6304*5531

17000*6304*5531

21800*6304*5531

23800*6304*5531

Weight

t

36

43

73

50

63

75

85

Model

YSMV-5035

YSMV-7035

YSMV-9035

YSMV-10035

YSMV-5041

YSMV-7041

YSMV-9041

YSMV-10041

Item

Specification

Unit

Travel

X-axis travel

mm

















Y-axis travel

mm

5000

7000

9000

10000

5000

7000

9000

10000

Z-axis travel

mm

3500

3500

3500

3500

4100

4100

4100

4100

Distance from spindle nose to workpiece

mm

1300

1300

1300

1300

1300

1300

1300

1300

Rail type



150-1450

150-1450

150-1450

150-1450

150-1450

150-1450

150-1450

150-1450

Gantry width



XYZ heavy-duty ball linear guideway

Ram cross-section size



3500

3500

3500

3500

4100

4100

4100

4100

Worktable

Worktable size L*W

mm

4600×2600

6400×2600

8800×2600

10000×2600

4600×3000

6400×3000

8800×3000

10000×3000

Maximum worktable load

t

22

25

35

40

22

25

35

40

T-slot

no/mm

28*200

28*200

28*200

28*200

28*200

28*200

28*200

28*200

Spindle

Spindle type

type

BT-50

BT-50

BT-50

BT-50

BBT-50

BBT-50

BBT-50

BBT-50

Spindle speed

rpm

6000

6000

6000

6000

6000

6000

6000

6000

Spindle drive mode



Direct drive spindle

Feed

X/Y/Z axis rapid feed

m/min

2010/12/12

2008/12/12

2006/12/12

2008/12/12

2010/12/12

2008/12/12

2006/12/12

2008/12/12

Maximum cutting feed

m/min

8

8

6

8

8

8

6

8

Tool changer





Optional 24/40/60T

Motor

Spindle motor (electric motor)

Nm

143-259

140-283

140-283

140-283

143-259

140-283

140-283

140-283

Three-axis servo motor XMZ

Nm

36/36/36

38/30/30

38/30/30

38/30/30

36/36/36

38/30/30

38/30/30

38/30/30

Accuracy execution standard GBT25658.1-2010

Positioning accuracy

mm

0.03/0.02/0.015

0.03/0.02/0.015

0.055/0.02/0.015

0.055/0.02/0.015

0.03/0.02/0.015

0.03/0.02/0.015

0.055/0.02/0.015

0.055/0.02/0.015

Repeat positioning accuracy

mm

0.018/0.015/0.01

0.022/0.015/0.01

0.045/0.015/0.01

0.045/0.015/0.01

0.018/0.015/0.01

0.022/0.015/0.01

0.045/0.015/0.01

0.045/0.015/0.01

Power requirements

Electric power requirements

kVA

40

40

40

40

40

50

50

50

Air pressure requirements

kg/cm²

6^8

6^8

6^8

6^8

6^8

6^8

6^8

6^8

Machine tool dimensions

Length/Width/Height

mm

500×6800×5531

17000×6800×5531

20965×6986×5500

26300×6986×5500

12500×7135×5800

16850×7135×5800

23700×7135×5800

26300×7135×5800

Weight

t

56

68

78

87

68

78

85

96



Standard accessories:

★ Rigid tapping

★ Automatic lubrication system

★ Semi-enclosed protective cover

★ Dual work lights

★ Heat exchanger inside electrical cabinet

★ Powerful double-helix chip conveyor

★ Labyrinth dust-proof air blowing at spindle nose

★ Three-color warning light

★ Key-type chip conveyor and collection bucket

★ Automatic power-off system (M30)

★ Foundation bolts and pads

Optional accessories

★ Three-axis optical scale

★ Spindle center water outlet system

★ 40T tool magazine

★ Tool breakage detector

★ Automatic chip conveyor

★ Rotary table (fourth axis)

★ Mist cooling system

★ Rotary oil-water separator

★ Side milling head

★ Air conditioning

★ Automatic tool setter

Inquiry Now

If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.

Product Evaluation

Write A Review
Nickname:
Your Rating:
Comment:

You May Like

377ea819-ba23-47e7-bf81-160f9a5d971f

Large size 500x500 heavy-duty design. Original size 460x460;

YSMV Series
_0000_MINGYUANDA

Sign Up For Our Newsletter :

Quick Link

  • Home
  • Products
  • About Us
  • Download
  • News
  • Contact

Products

  • Five-axis machining center
  • Vertical Machining Center
  • Horizontal Machining Center
  • Longmen Machining Center
  • CNC Lathe Series
  • Gear Processing Machine Tool
  • Thread Processing Machine Tool
  • External Cylindrical Grinder
  • Surface Grinder

Contact Information

+86-13791938299 +86-17685783089

mydt@mydtopcnc.com sai@mydtopcnc.com

No. 1 Yuanshuo Road, Dongnugushan Community, Liuting Street, Chengyang District, Qingdao City, Shandong Province

Copyright © 2025 Qingdao MYD Intelligent Technology Co., Ltd. All Rights Reserved. Powered by HiCheng

PRIVACY POLICY SITEMAP
  • +7 (985) 085-97-26

  • +86-13791938299 +86-17685783089

  • mydt@mydtopcnc.com sai@mydtopcnc.com

  • E-mail
  • Tel
  • whatsapp
  • message
  • contact
