Large size 500x500 heavy-duty design. Original size 460x460;
Large size 500x500 heavy-duty design. Original size 460x460;

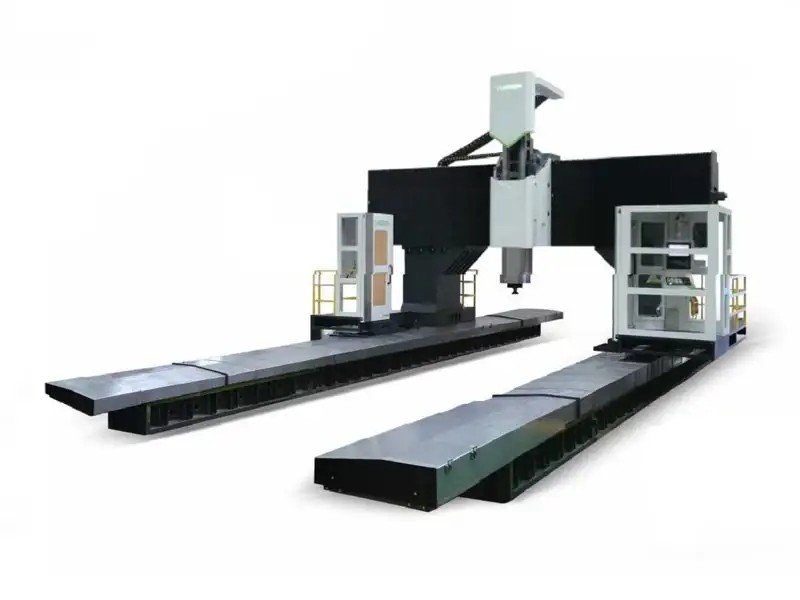

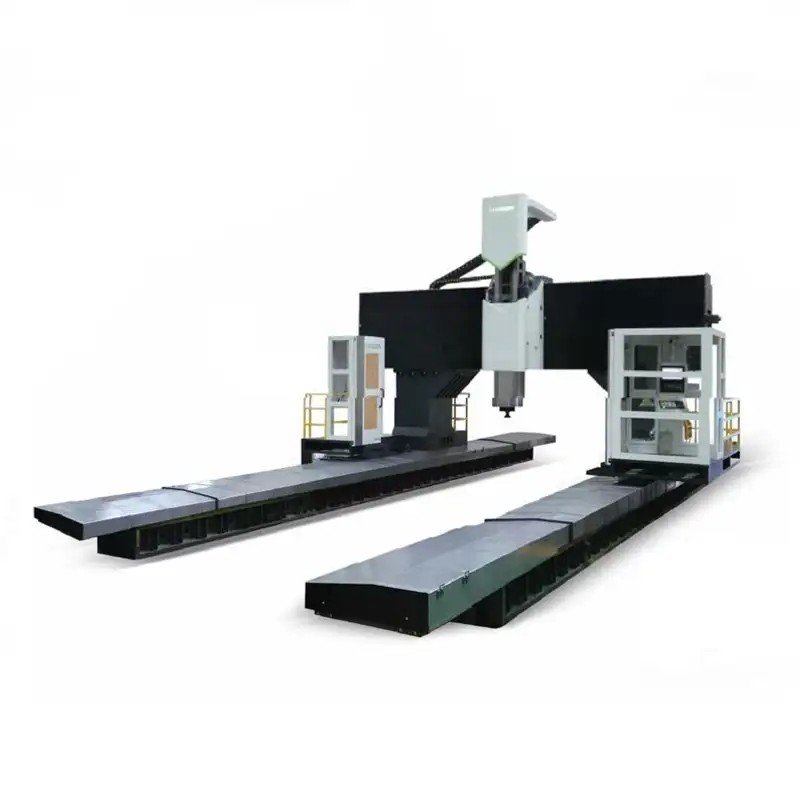

The gantry machine tool has strong rigidity, symmetrical structure, and high stability. By continuously optimizing component structures, it improves the dynamic performance of the product, achieving high power, high torque, high efficiency, and high precision machining. Suitable for large-scale processing fields such as shipbuilding, metallurgy, mining machinery, power energy, construction machinery, and heavy machinery.
| Square slide saddle and slide seat structure | Italian BF gearbox | Rack and pinion drive |
● Large size 500x500 heavy-duty design; ● Built-in direct coupling design; ● Large size heavy-duty design ensures firm grip on the slide saddle; ● Three extended sliders on the upper part and four standard sliders on the lower part for support. |
High-performance speed with low noise, scalable motor constant power range, easy installation, compatible with multiple series of motors, adaptable to high tensile forces, compact appearance. | High precision, high load, high speed, low noise, long service life. |
Model | YSMD-6042 | YSMD-8042 | YSMD-10042 | YSMD-12042 | YSMD-14042 | YSMD-16042 | YSMD-18042 | YSMD-21042 | ||
Item | Specification | Unit | ||||||||
Stroke | X-axis stroke | mm | 6000 | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 | 21000 |
Y-axis stroke | mm | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | |
Z-axis stroke | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
Distance from spindle nose to worktable | mm | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | |
Guideway type | X: Heavy-duty roller linear guide Y: Heavy-duty roller linear guide Z: Square slideway | X: Heavy-duty roller linear guide Y: Heavy-duty roller linear guide Z: Square slideway | ||||||||
Gantry width | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | ||
Slide saddle cross-section size | Square slide saddle (500×500) | Square slide saddle (500x500) | ||||||||
Worktable | Worktable size L*W | mm | 6000*3500 | 8000*3500 | 10000*3500 | 12000*3500 | 14000*3500 | 16000*3500 | 18000*3500 | 21000*3500 |
Maximum worktable load | t | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
T-slot | no/mm | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | |
Spindle | Spindle taper | Type | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 |
Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
Spindle drive mode | Direct drive spindle | Direct coupling spindle | ||||||||
Feed | XY/Z axis rapid feed | m/min | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 |
Maximum cutting feed | m/min | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Tool changer | Optional 24T/40T/60T | Optional 24T/40T/60T | ||||||||
Motor | Spindle motor (electric motor) | KW | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 |
Three-axis servo motor XYZ | KW | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | |
Accuracy execution standard | Positioning accuracy | mm | 0.04/0.035/0.02 | 0.04/0.035/0.02 | 0.055/0.035/0.02 | 0.06/0.035/0.02 | 0.07/0.035/0.02 | 0.08/0.035/0.02 | 0.09/0.035/0.02 | 0.10/0.035/0.02 |
GBT25658.1-2010 | Repeat positioning accuracy | mm | 0.03/0.025/0.015 | 0.035/0.025/0.015 | 0.04/0.025/0.015 | 0.045/0.025/0.015 | 0.055/0.025/0.015 | 0.065/0.025/0.015 | 0.075/0.025/0.015 | 0.085/0.025/0.015 |
Power requirements | Electric power requirements | kVA | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Air pressure requirements | kg/cm² | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | |
Machine Tool Dimensions | Length/Width/Height | mm | 10800×7730×5950 | 12800×7730×5950 | 20300×7730×5950 | 21200×7730×5950 | 26000×7730×5950 | 25200×7730×5950 | 27200×7730×5950 | 29200×7730×5950 |
Weight | t | 95 | 105 | 115 | 125 | 135 | 145 | 155 | 170 | |
Model | YSMD-6042 | YSMD-8042 | YSMD-10042 | YSMD-12042 | YSMD-14042 | YSMD-16042 | YSMD-18042 | YSMD-21042 | ||
Item | Specification | Unit | ||||||||
Stroke | X-axis stroke | mm | 6000 | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 | 21000 |
Y-axis stroke | mm | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | |
Z-axis stroke | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
Distance from spindle nose to worktable | mm | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | 350-1850 | |
Guideway type | X: Heavy-duty roller linear guide Y: Heavy-duty roller linear guide Z: Square slideway | X: Heavy-duty roller linear guide Y: Heavy-duty roller linear guide Z: Square slideway | ||||||||
Gantry width | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | 4200 | ||
Slide saddle cross-section size | Square slide saddle (500×500) | Square slide saddle (500x500) | ||||||||
Worktable | Worktable size L*W | mm | 6000*3500 | 8000*3500 | 10000*3500 | 12000*3500 | 14000*3500 | 16000*3500 | 18000*3500 | 21000*3500 |
Maximum worktable load | t | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
T-slot | no/mm | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | 36*200 | |
Spindle | Spindle taper | Type | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 |
Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
Spindle drive mode | Direct drive spindle | Direct coupling spindle | ||||||||
Feed | XY/Z axis rapid feed | m/min | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 | 2008/8/8 |
Maximum cutting feed | m/min | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Tool changer | Optional 24T/40T/60T | Optional 24T/40T/60T | ||||||||
Motor | Spindle motor (electric motor) | KW | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 | 22-57 |
Three-axis servo motor XYZ | KW | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | 5.4/5.4/5.4 | |
Accuracy execution standard | Positioning accuracy | mm | 0.04/0.035/0.02 | 0.04/0.035/0.02 | 0.055/0.035/0.02 | 0.06/0.035/0.02 | 0.07/0.035/0.02 | 0.08/0.035/0.02 | 0.09/0.035/0.02 | 0.10/0.035/0.02 |
GBT25658.1-2010 | Repeat positioning accuracy | mm | 0.03/0.025/0.015 | 0.035/0.025/0.015 | 0.04/0.025/0.015 | 0.045/0.025/0.015 | 0.055/0.025/0.015 | 0.065/0.025/0.015 | 0.075/0.025/0.015 | 0.085/0.025/0.015 |
Power requirements | Electric power requirements | kVA | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Air pressure requirements | kg/cm² | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | 6^8 | |
Machine Tool Dimensions | Length/Width/Height | mm | 10800×7730×5950 | 12800×7730×5950 | 20300×7730×5950 | 21200×7730×5950 | 26000×7730×5950 | 25200×7730×5950 | 27200×7730×5950 | 29200×7730×5950 |
Weight | t | 95 | 105 | 115 | 125 | 135 | 145 | 155 | 170 | |
★ Spindle Constant Temperature Cooling System ★ Automatic Lubrication System ★ Semi-Enclosed Sealed Chip Guard | ★ Rigid Tapping ★ Heat Exchanger Inside Electrical Box ★ Powerful Double Helical Chip Conveyor | ★ Dual Work Lighting ★ Three-Color Warning Light ★ Chain Type Chip Conveyor and Collection Bucket | ★ Stepless Gearbox Transmission ★ Foundation Bolts and Pads ★ Automatic Power-Off System (M30) |
| Optional Accessories | |||
★ Three-Axis Optical Scale ★ Spindle Center Water Outlet System ★ 24T/40T/60T | ★ Workpiece Side Head ★ Automatic Chip Conveyor ★ Rotary Worktable (Fourth Axis) | ★ Spray Cooling System ★ Disc Type Oil-Water Separator | ★ Semi/Full Automatic Side Milling Head ★ Automatic Tool Setter |
