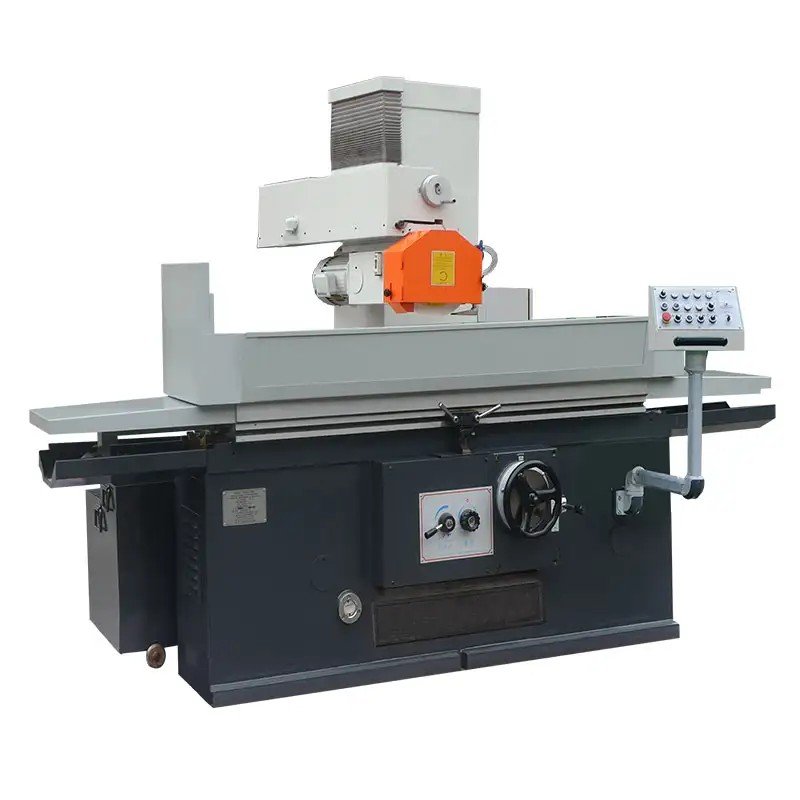

The surface grinder uses a high-rigidity cast iron bed and precision roller guides to ensure long-term processing stability. The worktable is equipped with an automatic reciprocating system, supporting ±0.001mm level precision adjustment to meet the requirements of high-precision flat and inclined surface grinding.
The surface grinding machine features a high-rigidity cast iron bed and precision roller guides to ensure long-term processing stability. The worktable is equipped with an automatic reciprocating system, supporting ±0.001mm level precision adjustment to meet high-precision flat and inclined surface grinding requirements.
● Equipped with a hydrostatic spindle system
● Intelligent cooling system effectively controls thermal deformation, ensuring consistency in batch processing
● Optional digital linear scale for real-time mechanical error compensation
● Widely used in mold manufacturing, precision parts, tool processing, and other fields, especially suitable for hard-to-grind materials such as cemented carbide and ceramics.
Main Technical Parameters | Unit | M7140 | M7140×16 | M7140×20W | M7140×25W |
Worktable Size (Width × Length) | mm | 400×1000 | 400×1600 | 400×2000 | 400×2500 |
Maximum Grinding Size (Width × Length × Height) | mm | 400×1000×400 | 400×1600×400 | 400×2000×400 | 400×2500×400 |
Worktable Longitudinal Travel (Hydraulic) | mm | 200～1100 | 200～1700 | 200～2100 | 200～2600 |
Worktable Load Capacity (Including Electromagnetic Chuck) | kg | 624 | 1000 | 1248 | 1560 |
Maximum Grinding Head Lateral Travel (Manual or Hydraulic) | mm | 430 | |||
Wheel Size (Outer Diameter × Width × Inner Diameter) | mm | φ400×50×φ203 | |||
Total Electrical Equipment Capacity | kVA | 12 | 14 | 20 | |
Grinding Head Motor Power | kW | 7.5 | |||
Workpiece Thickness Processing Accuracy | mm | 300:0.005 | |||
Workpiece Surface Roughness | μm | Ra0.63 | |||
Machine Dimensions (Length × Width × Height) | mm | 3200×1736×2250 | 4300×1736×2250 | 6610×1874×2250 | 7210×1900×2250 |
Packing Box Dimensions (Length × Width × Height) | cm | 360×191×260 | 453×215×260 | 513×203×276 | 573×203×276 |
Net Weight | kg | Approx. 4500 | Approx. 5400 | Approx. 7000 | Approx. 7100 |
