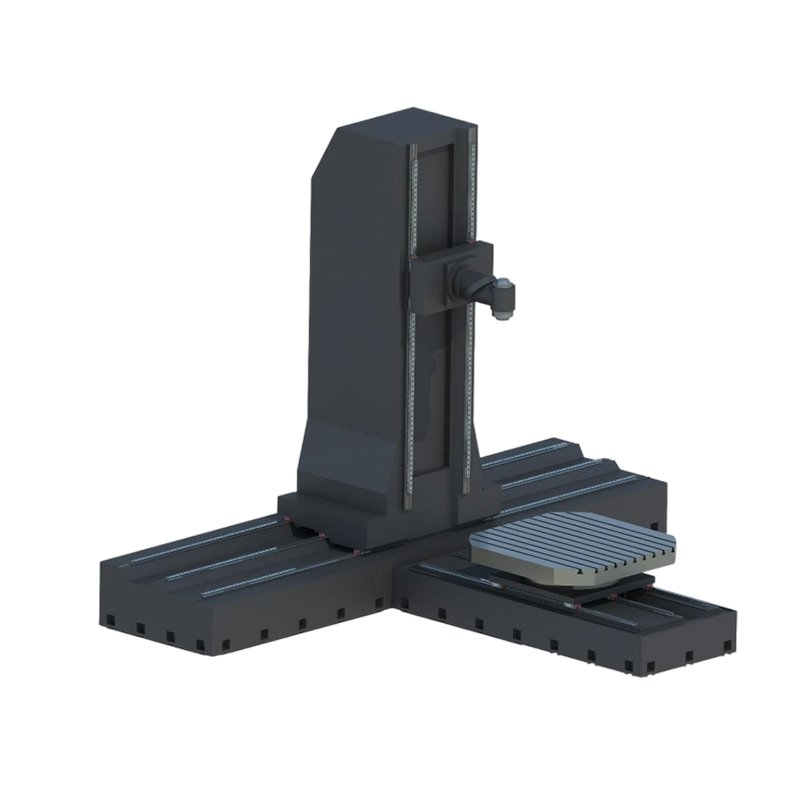

iTX Five-axis Boring & Milling Compound Machine

Product Description:

Powerful Machine Tool for Processing Large & Heavy Box-type Parts

Share To:

  • Add To Cart
  • Inquire Now
  • Product Details
  • Product Data
  • Inquiry Now
  • Product Evaluation
  • You May Like

Product Details

Features

  • Various Choices: iTX Series Five-axis Boring and Milling Compound, optional with various milling heads to accomplish different processing scenarios and requirements.

  • Rotary Table: high precision and heavy load, optional with multi-axis milling heads to process complex surfaces of large / heavy parts.

  • Powerful Machining: suitable for large / heavy box-type parts, Max. machining area 6000*6000*3000mm, Max. load 40000kg.


Product Data

Series

iTX  ()

Index

Standard


 iTX Series Parameters
ModeliTX200iTX260iTX300Unit
Worktable Size2000*20002500*25003000*3000mm
Worktable Load25000 30000 40000 kg
Worktable Speed8 5 5 rpm
Machining Area4000*4000*20005000*5000*25006000*6000*3000mm
B Travel240(±120)240(±120)240(±120)mm
C Travel360 360 360 mm
Spindle TypeBT50BT50BT50  一
Spindle Max.Speed3000 3000 3000 rpm
Spindle Power55 55 55 kw
Spindle Max.Torque1500 1500 1500 N.m
Tool Magzine Capacity40V6040V6040V60T
